2025 Kia Soul near Lowell, NC
The 2025 Kia Soul is engineered to deliver consistent mechanical performance, stable handling characteristics, and a practical interior layout supported by precise specifications. Its design emphasizes efficient operation through a unified engine configuration across all trims. Dimensional consistency, structured suspension components, and purpose-built systems contribute to predictable operation during a wide range of driving conditions. The model focuses on functional engineering without unnecessary complexity, offering clear technical advantages for drivers who prefer measurable capability. This overview outlines the specifications for the LX, S, EX, and GT Line trims with a focus solely on verifiable technical information.
Engine Configuration and Power Delivery
The 2025 Kia Soul uses a 2.0-liter inline four-cylinder engine across all trims. The engine displacement is 1999 cubic centimeters, supported by a bore of 81.0 millimeters and a stroke of 97.0 millimeters. A compression ratio of 12.5 to 1 contributes to efficient combustion. Power output is measured at 147 horsepower at 6200 rpm, and torque production reaches 132 pound-feet at 4500 rpm. These values remain identical across LX, S, EX, and GT Line models.
The engine uses aluminum construction for the block and the head. This material selection reduces excess weight and supports thermal efficiency. All trims utilize a spark ignition system and a dual overhead camshaft configuration that operates sixteen valves with hydraulic lash adjustments. The multi-port injection fuel system is consistent across trims and allows controlled fuel distribution. The recommended fuel is regular 87 octane gasoline.
The model uses a water pump-based cooling system and an oil pump-driven lubrication system. Oil capacity with the filter installed is 4.0 liters. These systems maintain regulated temperature and oil flow to protect mechanical components during extended use. The emission control system incorporates WCC and UCC components across all trims. Fuel tank capacity is 14.3 gallons regardless of model selection.

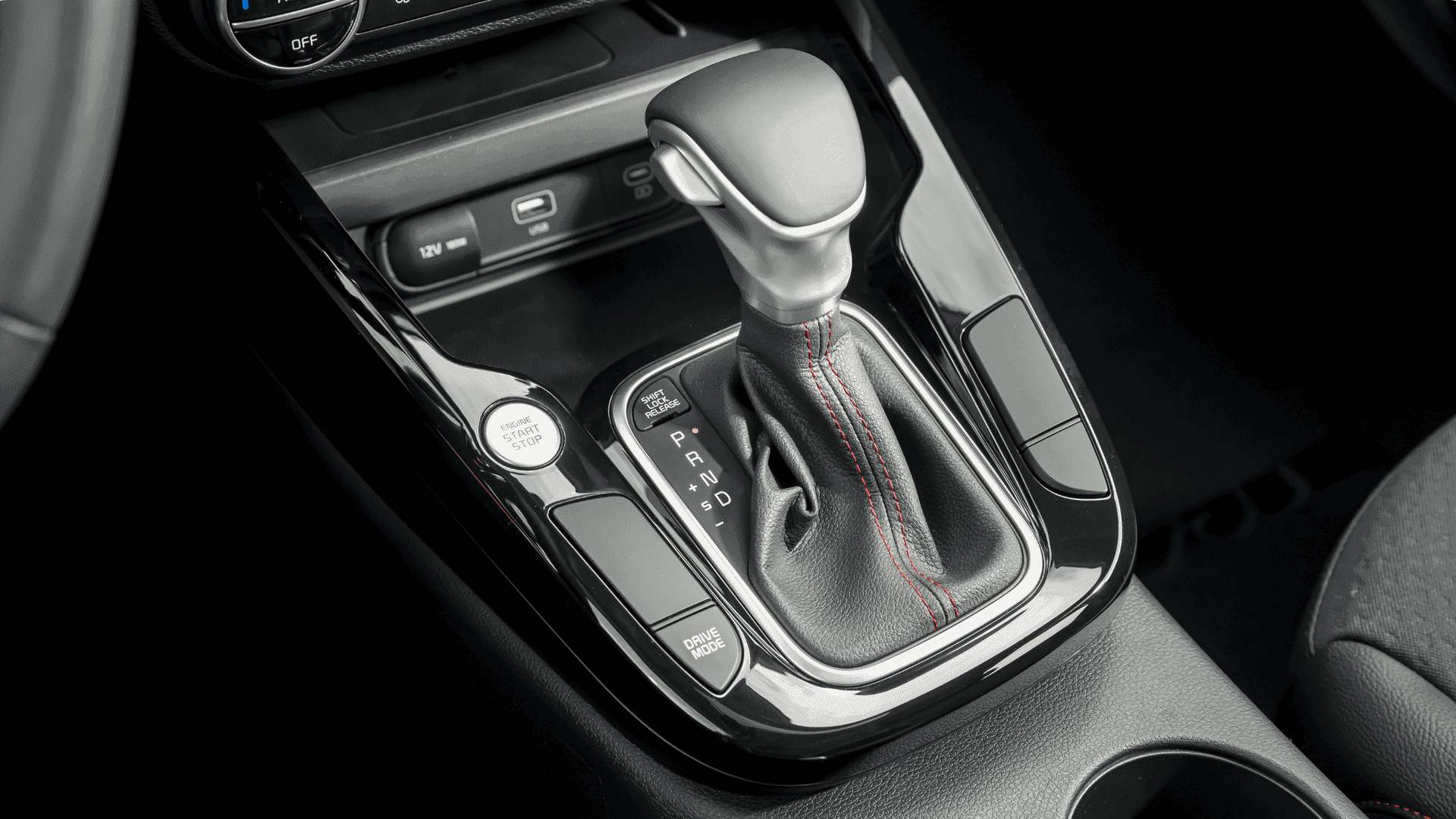

Transmission Performance and Drivetrain Structure
Every 2025 Kia Soul trim uses an Intelligent Variable Transmission referred to as iVT. This continuously variable style transmission manages gear ratios without fixed steps and maintains smooth transitions under different loads. The range of gear values extends from 2.680 to 1 down to 0.385 to 1. The reverse range is 2.822 to 1 through 1.822 to 1. A final gear ratio of 5.715 to 1 supports balanced torque distribution during acceleration. All trims use a torque converter-type clutch assembly and a lubricant capacity of 6.7 liters. These elements ensure consistent transmission operation and varied driving patterns.
Exterior Dimensions and haved Structural Characteristics
Dimensional measurements are identical for all trims. Overall length is 165.2 inches and width is 70.9 inches. Height is 63.0 inches, and wheelbase is 102.4 inches. The front and rear track widths measure 62.0 inches at the front and 62.4 inches at the rear. The front overhang is 34.1 inches, and the rear overhang is 28.7 inches. Ground clearance is 6.7 inches. These proportions allow the vehicle to maintain predictable road contact and balanced weight distribution.
Wheel and tire specifications vary by trim. The LX comes with 6.5J x 16 steel wheels with an available 6.5J x 16 alloy option. The S trim includes 6.5J x 16 alloy wheels. The EX trim upgrades to 6.5J x 17 alloy wheels, and the GT Line trim increases the size further to 7.5J x 18 alloy wheels. Tire specifications progress from P205 60 R16 on the LX and S to P215 55 R17 on the EX and P235 45 R18 on the GT Line. All models include a temporary spare tire for emergency use.
Curb weight differs slightly among trims. LX and S models weigh 2888 pounds. The EX weighs 2987 pounds, and the GT Line weighs 2998 pounds. GVWR for all trims is 4023 pounds. Fuel economy with the iVT and ISG system achieves 27 mpg city, 33 mpg highway, and 30 mpg combined for LX and S trims. The EX reaches 29 mpg city, 35 mpg highway, and 31 mpg combined. The GT Line estimates 27 mpg city, 33 mpg highway, and 30 mpg combined.

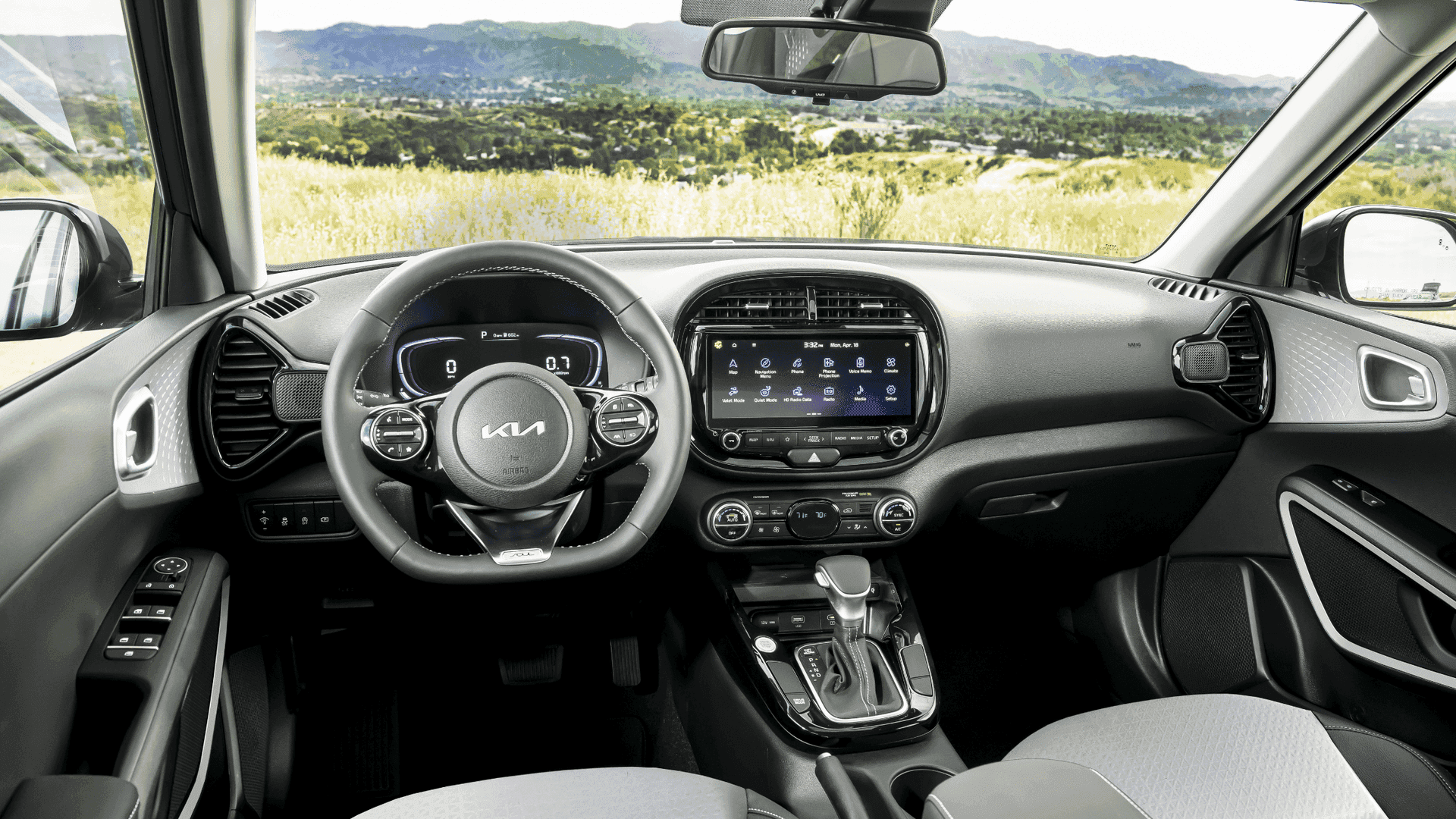

Interior Capacity and Cabin Measurements
Interior volume remains uniform across every trim with a total measurement of 120.9 cubic feet. Front legroom is 41.1 inches, and rear legroom is 38.8 inches. Shoulder room measures 55.5 inches in the front and 54.7 inches in the rear. LX and S trims offer 39.9 inches of front headroom and 39.5 inches of rear headroom when not equipped with a sunroof. The EX and GT Line adjust slightly depending on equipment selection.
Cargo volume measurements are also consistent. With the rear seats raised and the cargo mat in place, the usable space is 24.2 cubic feet. Cargo capacity with the dual-level board in the lower position measures 23.4 cubic feet, and in the upper position measures 18.7 cubic feet. With the rear seats folded, total cargo volume increases to 62.1 cubic feet. These measurements are designed to accommodate both everyday storage and larger loading requirements without modification.
Suspension Engineering and Ride Stability
The front suspension uses a MacPherson® strut configuration with a stabilizer bar. LX, S, and EX trims apply a Multi Functional Body Valve system while the GT Line uses a retainer-type sandwich valve system. The rear suspension uses a Coupled Torsion Beam Axle across all trims. This setup maintains rigidity and efficient wheel alignment to support stable movement over variable surfaces.
Steering uses a Motor Driven Power Steering system with a 12.8-to-1 steering ratio. The lock-to-lock range covers 2.5 turns. A turning circle of 34.8 feet allows maneuverability in compact spaces. These measurements ensure that steering input remains consistent and predictable.
Braking System Configuration
The braking system includes vented disc brakes in the front and solid disc brakes in the rear for every trim level. The front discs measure 11.0 inches, and the rear discs measure 10.3 inches. LX, S, and EX trims use a mechanical hand-operated parking brake. The GT Line includes a mechanical system as standard with the option to equip an electronic parking brake depending on selected packages. These braking specifications provide measured stopping capability appropriate for the vehicle’s size and weight.
Electrical Architecture and Supporting Components
All trims use a 150 amp alternator and an ISG 12V 1.4 kW starter. This configuration maintains electrical reliability for engine starts and accessory operation. The consistent specification across trims simplifies service requirements and supports accessory load without strain on the electrical system.
Technology Package Availability and Additional Functional Features
Available technology packages adjust capability without altering mechanical specifications. The LX Technology Package can add Blind Spot Collision Avoidance, Rear Cross Traffic Collision Avoidance Assist, Lane Change Assist, and 16-inch alloy wheels. The Soulmate Special Edition Package is available on the EX trim and adjusts appearance and interior enhancements. The GT Line Technology Package increases functional features with a power-adjustable driver seat, heated seats, Harman Kardon® audio, LED lighting, and, Highway Drive Assist Forward Collision Avoidance with cyclist detection, Junction Turning capability an electronic parking brake a cargo cover a dual level cargo board and navigation based Smart Cruise Control. These packages expand operational assistance but do not change baseline engineering measurements.
