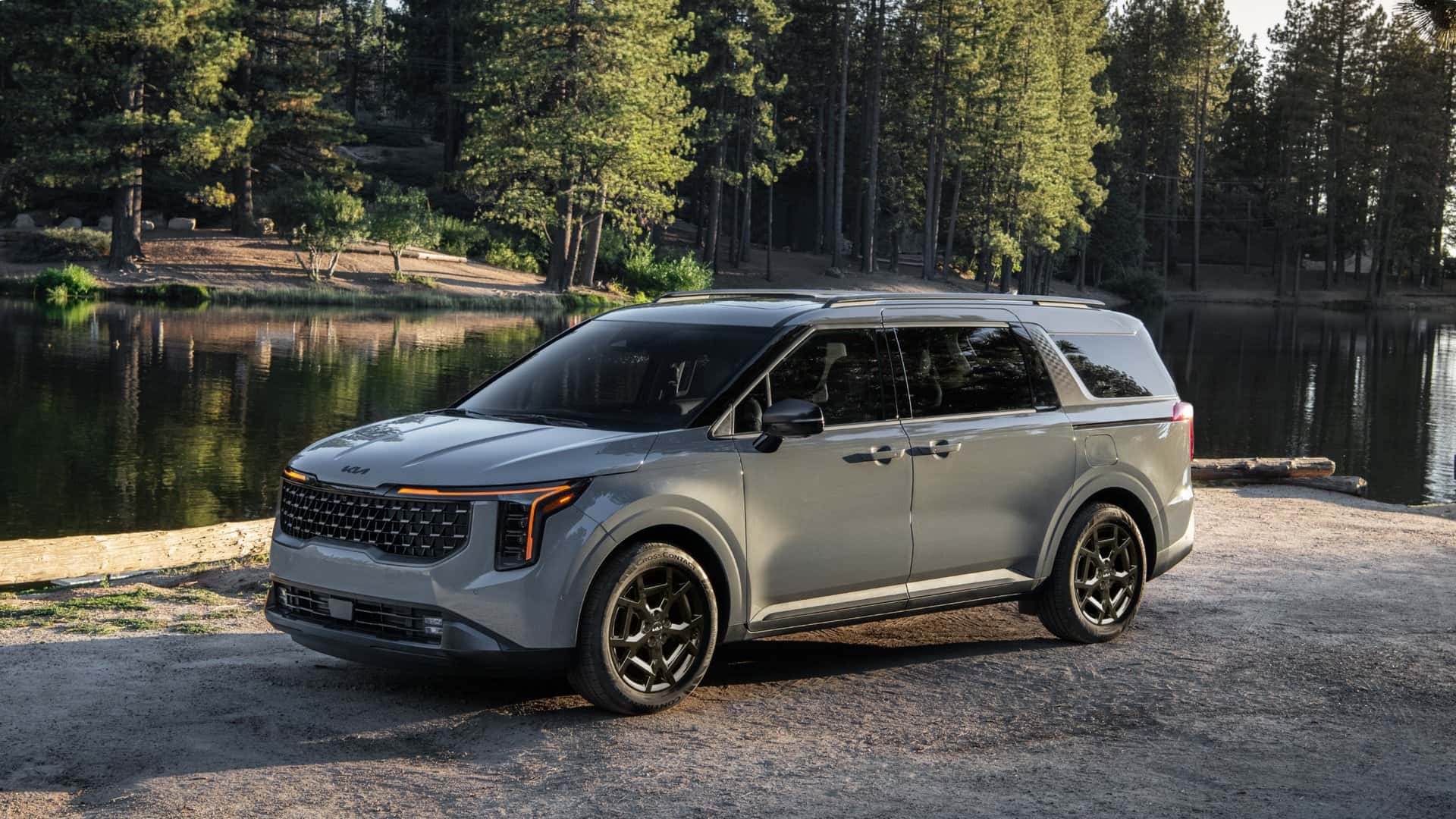

2026 Kia Carnival HEV near Columbia, SC
The 2026 Kia Carnival HEV integrates a turbocharged gasoline engine with an electric motor system to deliver combined hybrid performance across all trims, including LXS, EX, SX, and SX Prestige. Every trim shares the same 1.6-liter Turbo Gasoline Direct Injection engine with a displacement of 1,598 cc. The engine features an aluminum block and aluminum head construction to reduce overall weight while maintaining structural rigidity. Bore and stroke measure 75.6 mm by 89.0 mm, and the compression ratio is set at 10.5:1. The valvetrain uses a 16-valve configuration with swing arms and hydraulic lash adjusters. Ignition is managed by a distributorless plug-top coil system. The fuel injection system operates through Gasoline Direct Injection technology, and the recommended fuel is regular unleaded gasoline with an octane rating of 87 or higher.
The electric motor is a permanent magnet synchronous motor rated at 74.4 horsepower between 1,700 and 2,600 rpm. It produces 224.2 lb-ft of torque from 0 to 1,600 rpm, supporting immediate torque delivery during initial acceleration. The hybrid system delivers a total combined output of 241.7 horsepower and 270.5 lb-ft of torque. The hybrid battery is a lithium-ion unit operating at 270 volts with a capacity of 5.5 Ah and a total energy of 1.49 kWh. Battery output is rated at 64.0 kW, and the battery pack weighs 42.5 kilograms. The system uses liquid cooling with a 3.1-liter cooling capacity to regulate operating temperatures. Emissions control incorporates a warm-up catalytic converter and an underfloor catalytic converter. The lubrication system uses a gear pump, and the fuel tank capacity is 19.0 gallons. A 60 Ah battery supports auxiliary electrical functions.
Transmission Engineering and Gear Ratio Calibration
The 2026 Kia Carnival HEV uses a 6-speed automatic transmission engineered to balance acceleration, efficiency, and load capacity. The gear ratios are calibrated as follows: first gear at 4.639:1, second gear at 2.826:1, third gear at 1.841:1, fourth gear at 1.386:1, fifth gear at 1.000:1, and sixth gear at 0.772:1. Reverse gear is set at 3.385:1. The final drive ratio measures 3.648:1. This configuration supports strong low-speed pull while maintaining reduced engine speed at highway cruising velocities.
Dynamic performance figures reflect the hybrid system’s capability. Maximum speed is rated at 118 mph. Acceleration from 0 to 62.1 mph occurs in 9.3 seconds. Braking distance from 62.1 mph to a complete stop measures 139.1 feet. These figures remain consistent across all trim levels, ensuring uniform performance characteristics throughout the lineup.
Hybrid Battery and Electrical Integration
The lithium-ion hybrid battery system is designed to integrate seamlessly with the turbocharged engine and electric motor. Operating at 270 volts, it delivers consistent energy flow to support propulsion and regenerative charging. With a 5.5 Ah capacity and 1.49 kWh of stored energy, the battery provides supplemental power during acceleration and assists in fuel efficiency during steady driving conditions. The 64.0 kW output rating ensures sufficient electrical contribution during hybrid operation.
Battery weight of 42.5 kilograms reflects an effort to balance durability with overall vehicle mass. The liquid-cooled design maintains stable operating temperatures under varying driving loads. The 60 Ah auxiliary battery supports the vehicle’s broader electrical system. Together, these systems form an integrated electrical architecture that contributes to an estimated fuel economy rating of 34 mpg in the city, 31 mpg on the highway, and 32 mpg combined.

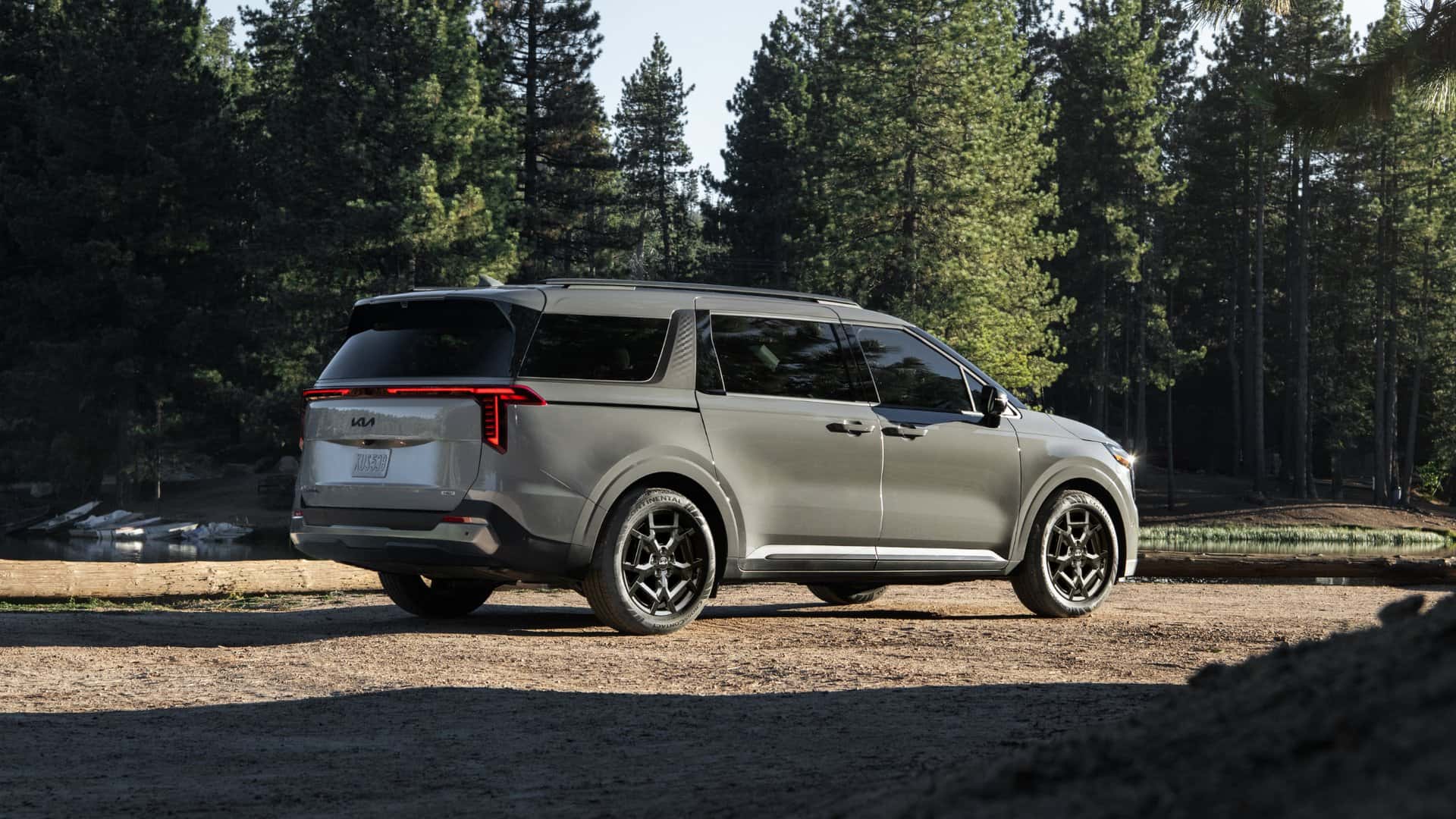

Exterior Dimensions and Structural Measurements
The 2026 Kia Carnival HEV is built on a 121.7-inch wheelbase. Overall length measures 203.0 inches. Width measures 78.5 inches without side mirrors and 89.2 inches with side mirrors extended. Height without roof rails measures 68.5 inches, while models equipped with roof rails measure 69.9 inches in height. Front track measures 68.9 inches on the LXS trim and 68.5 inches on the EX, SX, and SX Prestige trims. Rear track measures 68.9 inches on the LXS and 68.5 inches on the remaining trims. Front overhang measures 36.8 inches, and rear overhang measures 44.5 inches.
Minimum ground clearance is rated at 6.8 inches. The approach angle measures 15.4 degrees, and the departure angle measures 20.0 degrees. Roof rack load capacity is 165 pounds. These dimensions contribute to balanced proportions and stable road contact while maintaining interior capacity.

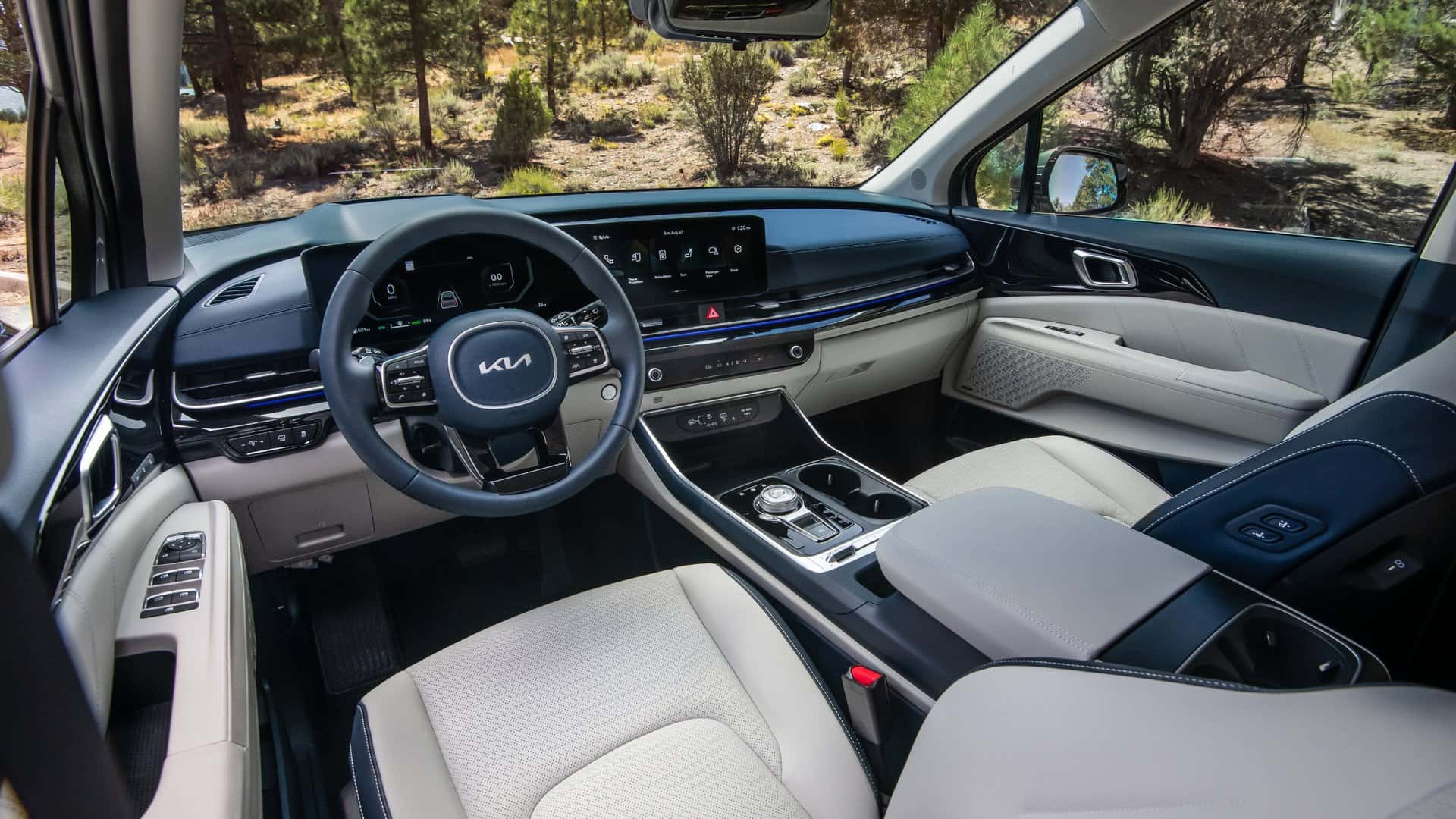

Interior Space and Passenger Dimensions
Interior measurements emphasize occupant space across three rows. Front headroom without a sunroof measures 40.9 inches. Second-row headroom without a sunroof measures 39.5 inches, and third-row headroom without a sunroof measures 38.6 inches. For trims equipped with a sunroof, front headroom measures 39.7 inches, second-row headroom measures 37.6 inches, and third-row headroom measures 36.5 inches.
Front legroom measures 41.1 inches. Second-row legroom measures 40.5 inches. Third-row legroom measures 35.6 inches. Front shoulder room measures 64.2 inches, second-row shoulder room measures 63.2 inches, and third-row shoulder room measures 59.5 inches. Front hip room measures 59.8 inches, second-row hip room measures 66.4 inches, and third-row hip room measures 50.4 inches.
Interior cargo volume measures 40.2 cubic feet in minimum configuration. Maximum interior cargo volume expands to 145.1 cubic feet. These measurements remain consistent across trim levels, ensuring predictable cargo capacity and seating flexibility.
Chassis Configuration and Suspension Systems
The front suspension uses a MacPherson® strut design. The rear suspension employs a multi-link configuration. Both systems are paired with gas shock absorbers to control body movement and maintain contact with the road surface. This suspension layout supports load distribution across passenger and cargo configurations.
Steering uses a column-mounted electric power steering system. The steering ratio is 14.23:1. Steering requires 3.0 turns lock-to-lock. This specification provides controlled steering input and predictable response during lane changes and parking maneuvers.
Braking System and Control Components
The braking system uses ventilated disc brakes in the front and solid disc brakes in the rear. Both front and rear disc diameters measure 12.8 inches. An electronic parking brake is standard across all trims. The brake booster system uses an Integrated Electronic Booster configuration to enhance pedal response and braking force modulation.
The combination of disc dimensions and electronic brake assistance contributes to the recorded stopping distance of 139.1 feet from 62.1 mph. These components function cohesively with regenerative braking within the hybrid system to manage deceleration efficiently.
Wheel, Tire, and Load Ratings
Wheel and tire specifications vary by trim. The LXS trim uses 6.5J x 17-inch alloy wheels paired with P235/65R17 tires. The EX, SX, and SX Prestige trims use 7.5J x 19-inch alloy wheels paired with P235/55R19 tires. All trims include a tire mobility kit in place of a spare tire.
Curb weight for the 8-passenger configuration measures 4,852 pounds. The 7-passenger configuration on the SX Prestige trim weighs 4,967 pounds. Gross Vehicle Weight Rating is 6,504 pounds for both 7-passenger and 8-passenger configurations. Braked towing capacity is rated at 2,500 pounds, and unbraked towing capacity is rated at 1,000 pounds.
Integrated Efficiency and Capability Overview
The hybrid configuration combines turbocharged gasoline power with electric assistance to achieve 32 mpg combined fuel economy. City rating measures 34 mpg, and the highway rating measures 31 mpg. The 19.0-gallon fuel tank supports extended driving intervals between refueling stops. The hybrid battery’s regenerative capability contributes to sustained efficiency during deceleration phases.
Performance figures, structural measurements, and load capacities remain consistent across all trims, ensuring predictable specifications for buyers comparing configurations.
Disclaimer: Based on EPA estimates. Actual mileage will vary with options, driving conditions, driving habits, and your vehicle’s condition. For more information, please see www.fueleconomy.gov.
