2026 Kia Carnival HEV near Rock Hill, SC

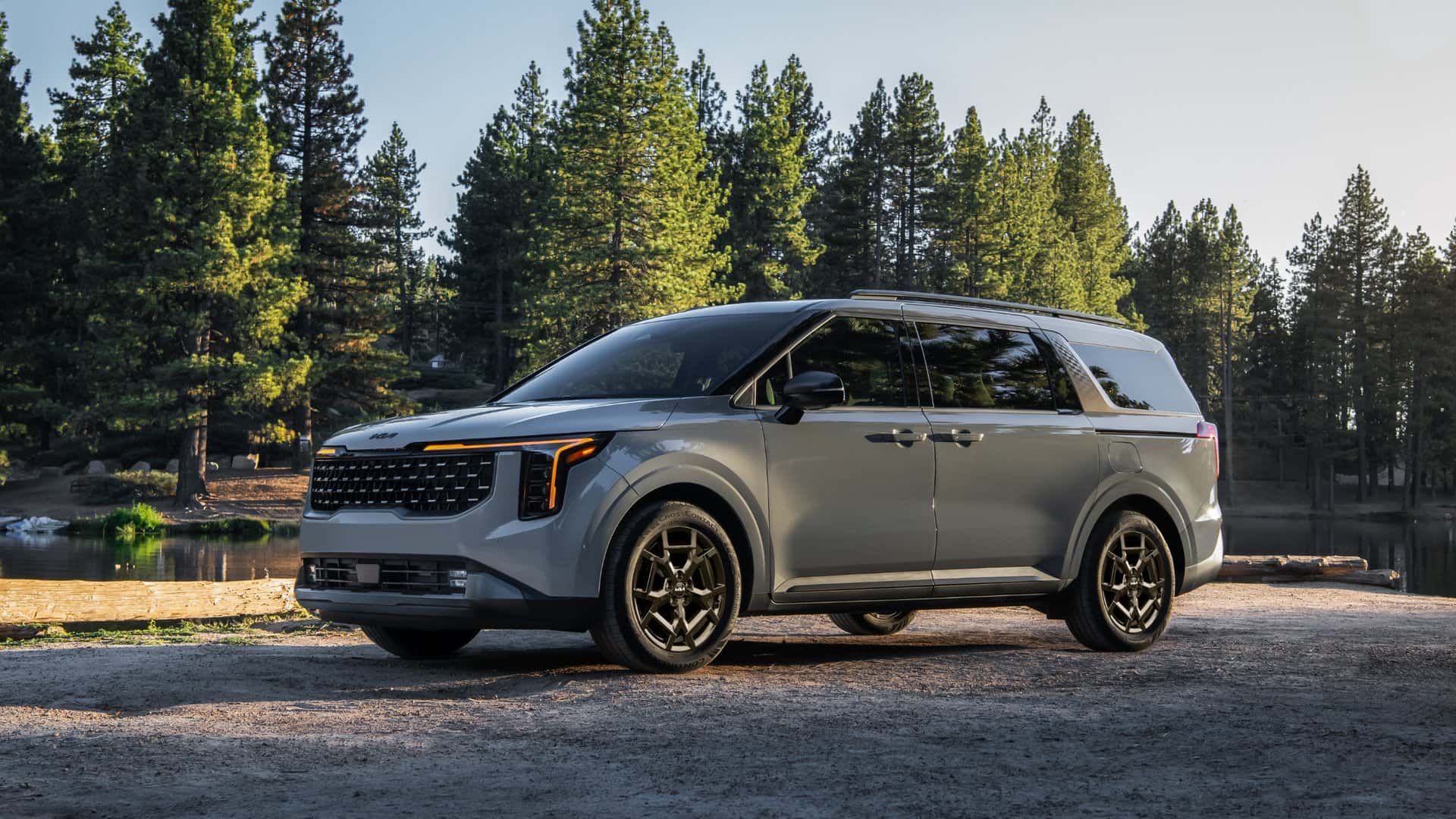

The 2026 Kia Carnival HEV is a three-row hybrid vehicle that combines gasoline and electric power with a focus on passenger space, cargo capacity, and mechanical efficiency. Available in LXS, EX, SX, and SX Prestige trims, the model uses a common hybrid powertrain configuration and shares many of its key engineering specifications across the lineup. The vehicle incorporates a turbocharged engine, a lithium-ion battery system, a six-speed automatic transmission, and a chassis designed to support everyday transportation and utility needs. Interior packaging, towing capability, suspension design, and dimensional measurements contribute to its functional character.
Hybrid Powertrain and Engine Specifications
The 2026 Kia Carnival HEV uses a hybrid system that combines a turbocharged gasoline engine with permanent magnet synchronous motor technology. This configuration is shared across the LXS, EX, SX, and SX Prestige trims, providing a common set of performance specifications throughout the lineup. The hybrid system itself produces 18 horsepower and 31.9 pound-feet of torque. The electric motor contributes 74.4 horsepower between 1,700 and 2,600 rpm and delivers 224.2 pound-feet of torque from 0 to 1,600 rpm. Combined system output reaches 241.7 horsepower and 270.5 pound-feet of torque, giving the 2026 Kia Carnival HEV a consistent power rating regardless of trim level.
Turbocharged Gasoline Engine
The gasoline engine in the 2026 Kia Carnival HEV is a 1.6-liter Turbo Gasoline Direct Injection unit with a displacement of 1,598 cubic centimeters. It features an aluminum block and aluminum cylinder head, contributing to the engine’s lightweight construction. Bore and stroke dimensions measure 75.6 mm by 89.0 mm, and the compression ratio is listed at 10.5:1. The engine employs a 16-valve system with swing arms and hydraulic lash adjusters. Gasoline Direct Injection technology manages fuel delivery, and the engine is designed to operate on regular unleaded gasoline with a minimum octane rating of 87.
Cooling, Fuel, and Emissions Systems
The 2026 Kia Carnival HEV uses a liquid-cooled system with a listed cooling capacity of 3.1 liters. Lubrication duties are handled by a gear pump system that is used throughout the lineup. Fuel storage capacity measures 19.0 gallons, providing a common specification across all trims. The emissions system includes a warm-up catalytic converter and an underfloor catalytic converter.
Hybrid Battery and Electrical Components
The hybrid electrical system of the 2026 Kia Carnival HEV incorporates a lithium-ion battery pack shared across all trim levels. The battery operates at 270 volts and has a capacity rating of 5.5 amp-hours. Total energy storage is listed at 1.49 kWh, and the battery assembly weighs 42.5 kilograms. In addition to the hybrid battery system, the vehicle includes a 60 Ah battery as part of its electrical architecture.
Electric Motor Characteristics
Permanent magnet synchronous motor technology is used throughout the hybrid system. The electric motor produces 74.4 horsepower in the 1,700 to 2,600 rpm range and provides torque from zero rpm up to 1,600 rpm. This operating range allows the motor to contribute to overall system performance throughout a broad portion of the power band. The electric motor configuration remains identical across all four trim levels.
Transmission and Drivetrain Configuration
The 2026 Kia Carnival HEV uses a six-speed automatic transmission with the same gear ratios across the entire model range. First gear carries a ratio of 4.639:1, followed by second gear at 2.826:1 and third gear at 1.841:1. Fourth gear measures 1.386:1, fifth gear is 1.000:1, and sixth gear uses a ratio of 0.772:1. Reverse gear is rated at 3.385:1, while the final drive ratio measures 3.648:1.
Performance and Efficiency
Performance figures for the 2026 Kia Carnival HEV remain unchanged throughout the trim range. The vehicle has a listed maximum speed of 118 mph and requires 9.3 seconds to accelerate from 0 to 62.1 mph. Braking distance from 62.1 mph to a complete stop measures 139.1 feet. These figures establish the performance parameters associated with the hybrid powertrain and chassis.
Fuel Economy Ratings
Estimated fuel economy figures are identical across the LXS, EX, SX, and SX Prestige trims. The 2026 Kia Carnival HEV is rated at 34 mpg in city driving and 31 mpg on the highway. Combined fuel economy is estimated at 32 mpg. These ratings apply to models equipped with the six-speed automatic transmission.
Suspension, Steering, and Chassis Components
The chassis of the 2026 Kia Carnival HEV uses a MacPherson® strut front suspension and a multi-link rear suspension. Gas-filled shock absorbers are fitted at each corner, supporting ride control and chassis movement. This suspension arrangement is used on every trim level.
Electric Power Steering System
Column-mounted electric power steering is standard across all versions of the 2026 Kia Carnival HEV. The steering ratio measures 14.23:1, and the system requires 3.0 turns from lock to lock. These specifications remain unchanged from one trim level to another. The steering system works with the suspension layout to provide a consistent driving response.
Brake System Specifications
The 2026 Kia Carnival HEV uses ventilated front disc brakes and solid rear disc brakes. Both front and rear brake assemblies measure 12.8 inches in diameter. An electronic parking brake is fitted across all trims, providing the same parking brake arrangement throughout the lineup. The brake system uses an IEB booster type, and the same specification is listed for the booster diameter category. These components support the vehicle’s measured braking performance and establish a common brake package for the entire model range.
Exterior Dimensions and Vehicle Packaging
Exterior dimensions are largely consistent across all versions of the 2026 Kia Carnival HEV. Overall length measures 203.0 inches, while wheelbase length is 121.7 inches. Width with side mirrors extends to 89.2 inches, and width without side mirrors measures 78.5 inches. Ground clearance is listed at 6.8 inches. Approach and departure angles measure 15.4 degrees and 20.0 degrees, respectively, providing a defined dimensional profile for the vehicle.
Height, Track Width, and Overhang Measurements
LXS and EX trims have an overall height of 68.5 inches when equipped without roof rails. SX and SX Prestige models equipped with roof rails measure 69.9 inches in height. Front and rear track measurements are 68.9 inches on the LXS trim, while EX, SX, and SX Prestige models measure 68.5 inches front and rear. Front overhang measures 36.8 inches, and rear overhang measures 44.5 inches across all trims.

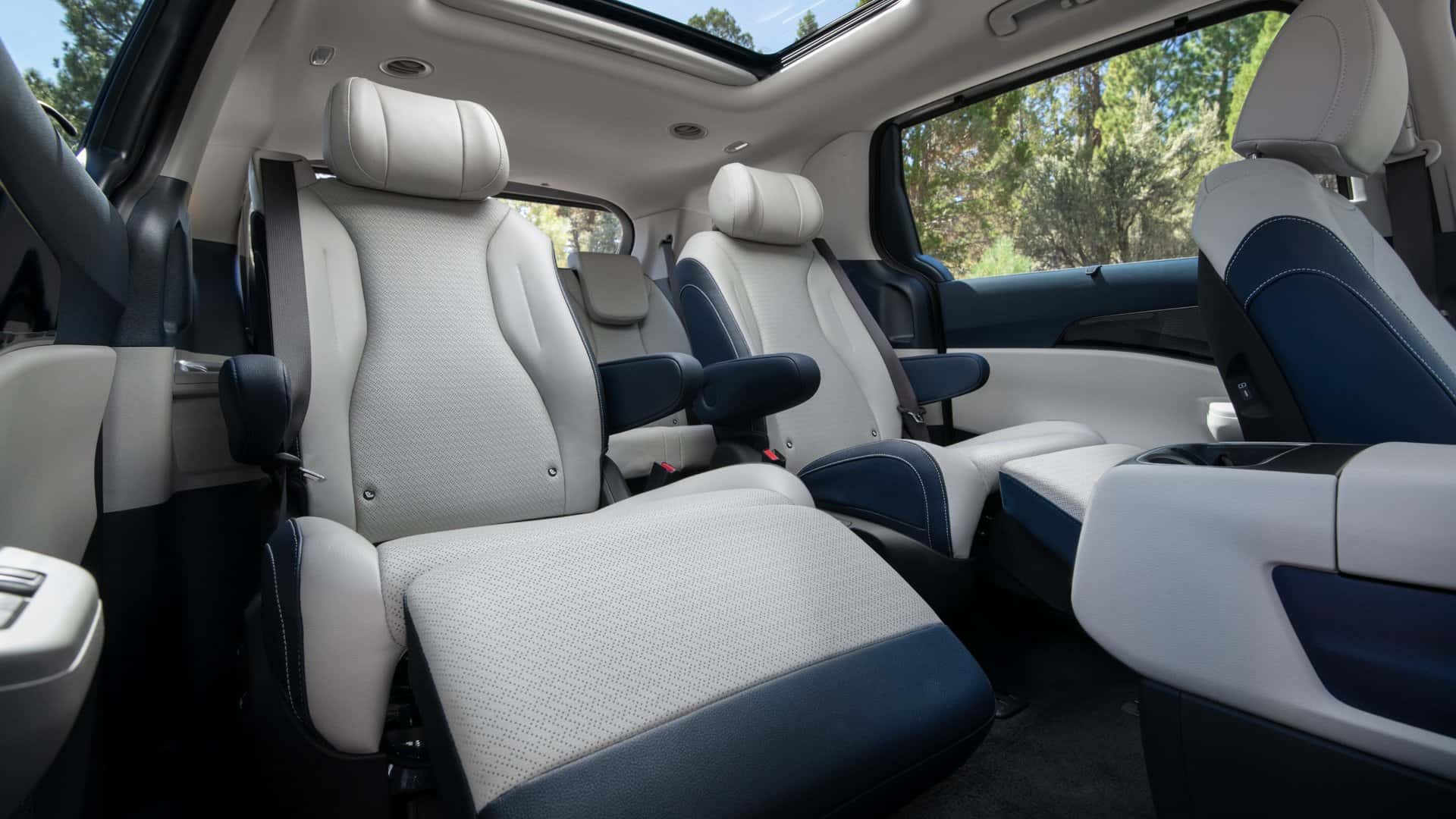

Interior Dimensions and Passenger Space
The 2026 Kia Carnival HEV provides three rows of seating with common measurements throughout the model range. Front-row legroom measures 41.1 inches, while second-row legroom measures 40.5 inches. Third-row passengers have 35.6 inches of legroom available. Shoulder room measures 64.2 inches in the front row, 63.2 inches in the second row, and 59.5 inches in the third row. Hip room dimensions are listed at 59.8 inches in front, 66.4 inches in the second row, and 50.4 inches in the third row.
Headroom Measurements
Headroom dimensions vary according to roof configuration. LXS and EX trims without a sunroof provide 40.9 inches of front headroom, 39.5 inches in the second row, and 38.6 inches in the third row. SX and SX Prestige models equipped with a sunroof provide 39.7 inches of front headroom, 37.6 inches in the second row, and 36.5 inches in the third row. Aside from headroom differences, the remaining passenger dimensions are shared across the lineup.
Cargo Capacity and Utility
Cargo capacity is an important aspect of the 2026 Kia Carnival HEV and remains consistent throughout the trim range. Minimum SAE cargo volume is listed at 40.2 cubic feet. Maximum cargo volume expands to 145.1 cubic feet. These figures provide substantial storage flexibility and support the vehicle’s multi-passenger layout.
Towing and Load Capacities
The 2026 Kia Carnival HEV carries a gross vehicle weight rating of 6,504 pounds in both seven-passenger and eight-passenger configurations. Roof rack load capacity is rated at 165 pounds. Braked towing capacity measures 2,500 pounds, while unbraked towing capacity is listed at 1,000 pounds. Minimum curb weight for eight-passenger configurations is 4,852 pounds, while the seven-passenger SX Prestige trim has a minimum curb weight of 4,967 pounds.
Wheels and Tire Specifications
Wheel and tire specifications vary according to trim level. The LXS trim uses 6.5J x 17 alloy wheels fitted with P235/65R17 tires. EX, SX, and SX Prestige trims are equipped with 7.5J x 19 alloy wheels and P235/55R19 tires. Every version of the 2026 Kia Carnival HEV includes a Tire Mobility Kit in place of a conventional spare tire. The wheel and tire combinations contribute to the overall specification differences between trims.
