2026 Kia Carnival near Rock Hill, SC

The 2026 Kia Carnival is engineered as a three-row vehicle with a consistent mechanical configuration across LX, LXS, EX, SX, and SX Prestige trims. It uses a 3.5-liter V6 gasoline direct-injection Lambda III engine paired with an 8-speed automatic transmission. The platform integrates a front MacPherson® strut suspension and a rear multi-link suspension, along with electric power steering and four-wheel disc brakes. The structure supports passenger capacity, cargo adaptability, and stable road performance through defined mechanical and dimensional specifications.

Engine Architecture and Output Characteristics

The 3.5-liter V6 engine in the 2026 Kia Carnival has a displacement of 3,470 cc. It uses an aluminum block and aluminum cylinder heads, which support weight control and thermal efficiency. The bore measures 92.0 mm, and the stroke measures 87.0 mm, creating a balanced internal geometry for power delivery. The compression ratio is set at 12.3:1, which supports efficient combustion under standard operating conditions.

The engine produces 287.1 horsepower at 6,400 rpm and 260.4 lb.-ft. of torque at 5,000 rpm. These figures remain consistent across all trims. The engine uses a 24-valve dual overhead camshaft configuration with a hydraulic lash adjustment system. This setup supports consistent valve operation and reduced maintenance requirements.

Fuel delivery combines gasoline direct injection and multi-port injection. This dual injection system manages fuel atomization across varying engine loads. The engine operates on unleaded gasoline with a minimum requirement of 87 octane. Cooling is managed through a liquid-cooled system, and emissions are controlled using both a warm-up catalytic converter and an underfloor catalytic converter. These components regulate exhaust output during different temperature phases.

Transmission Engineering and Gear Ratios

The 2026 Kia Carnival uses an 8-speed automatic transmission across all trims. The transmission provides a wide range of gear ratios that support controlled acceleration and stable highway operation. First gear is set at 4.808:1, allowing initial torque multiplication for vehicle launch. Second gear is 2.901:1, followed by third at 1.864:1 and fourth at 1.424:1. Fifth gear measures 1.219:1, while sixth gear is 1.000:1.

Seventh gear is configured at 0.799:1, and eighth gear is 0.648:1. These higher gears reduce engine speed during highway driving. Reverse gear is set at 3.425:1, providing adequate control during backing maneuvers. The final drive ratio is 3.510:1. This drivetrain arrangement ensures a consistent transition between gears and supports steady power delivery during acceleration and cruising.

Fuel Capacity and Efficiency Metrics

The 2026 Kia Carnival is equipped with a 19.0-gallon fuel tank. This capacity supports extended driving intervals between refueling. Estimated fuel economy ratings are 18 miles per gallon in city driving, 26 miles per gallon on the highway, and 21 miles per gallon combined. These values apply to all trim levels equipped with the automatic transmission.

The combination of a naturally aspirated V6 engine and an 8-speed transmission contributes to these efficiency figures. The higher gear ratios in the upper range of the transmission reduce engine workload at highway speeds, which supports the highway fuel economy rating.

Disclaimer: Based on EPA estimates. Actual mileage will vary with options, driving conditions, driving habits, and your vehicle’s condition. For more information, please see www.fueleconomy.gov.

Structural Dimensions and Exterior Measurements

The 2026 Kia Carnival is built with a wheelbase of 121.7 inches. Overall length measures 203.0 inches. The width measures 78.5 inches without side mirrors and 89.2 inches with mirrors. These dimensions define the vehicle’s footprint and support interior space allocation.

Height varies by configuration. LX, LXS, and EX trims measure 68.5 inches without roof rails. SX and SX Prestige trims measure 69.9 inches with roof rails. The front track measures 68.9 inches on LX and LXS trims and 68.5 inches on EX, SX, and SX Prestige trims. The rear track follows the same pattern.

Front overhang measures 36.8 inches, and the rear overhang measures 44.5 inches. Minimum ground clearance is 6.8 inches. The approach angle is 15.4 degrees, and the departure angle is 20.0 degrees. These measurements support stable road contact and consistent clearance for typical road conditions.

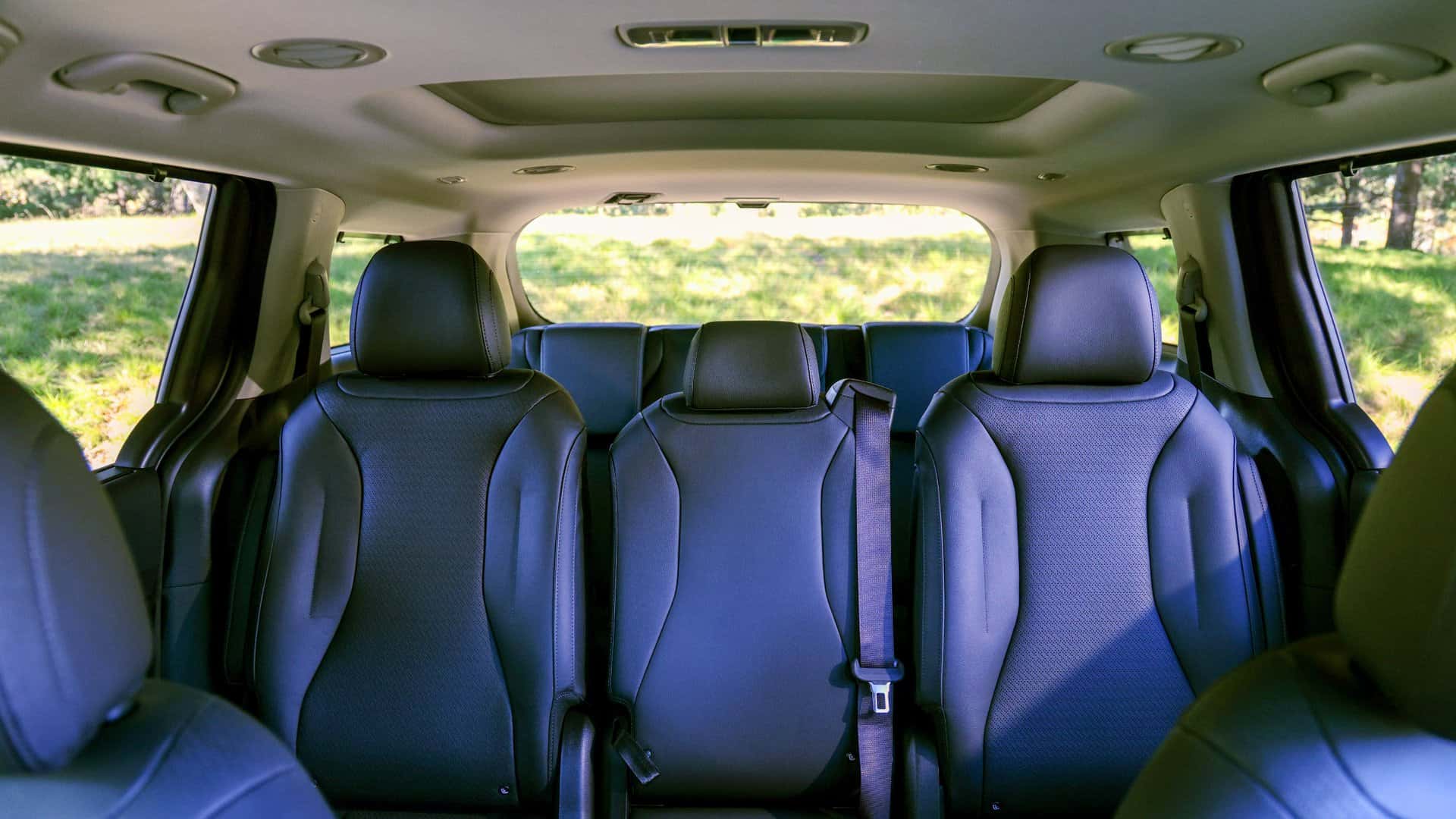

Interior Dimensions and Passenger Space Allocation

Interior dimensions are structured to support three rows of seating. Front headroom measures 40.9 inches without a sunroof. Second-row headroom measures 39.5 inches, and third-row headroom measures 38.6 inches in configurations without a sunroof. With a sunroof, front headroom is 39.7 inches, second-row headroom is 37.6 inches, and third-row headroom is 36.5 inches.

Legroom is consistent across trims. Front legroom measures 41.1 inches, second-row legroom measures 40.5 inches, and third-row legroom measures 35.6 inches. Shoulder room measures 64.2 inches in the front row, 63.2 inches in the second row, and 59.5 inches in the third row. Hip room measures 59.8 inches in the front row, 66.4 inches in the second row, and 50.4 inches in the third row.

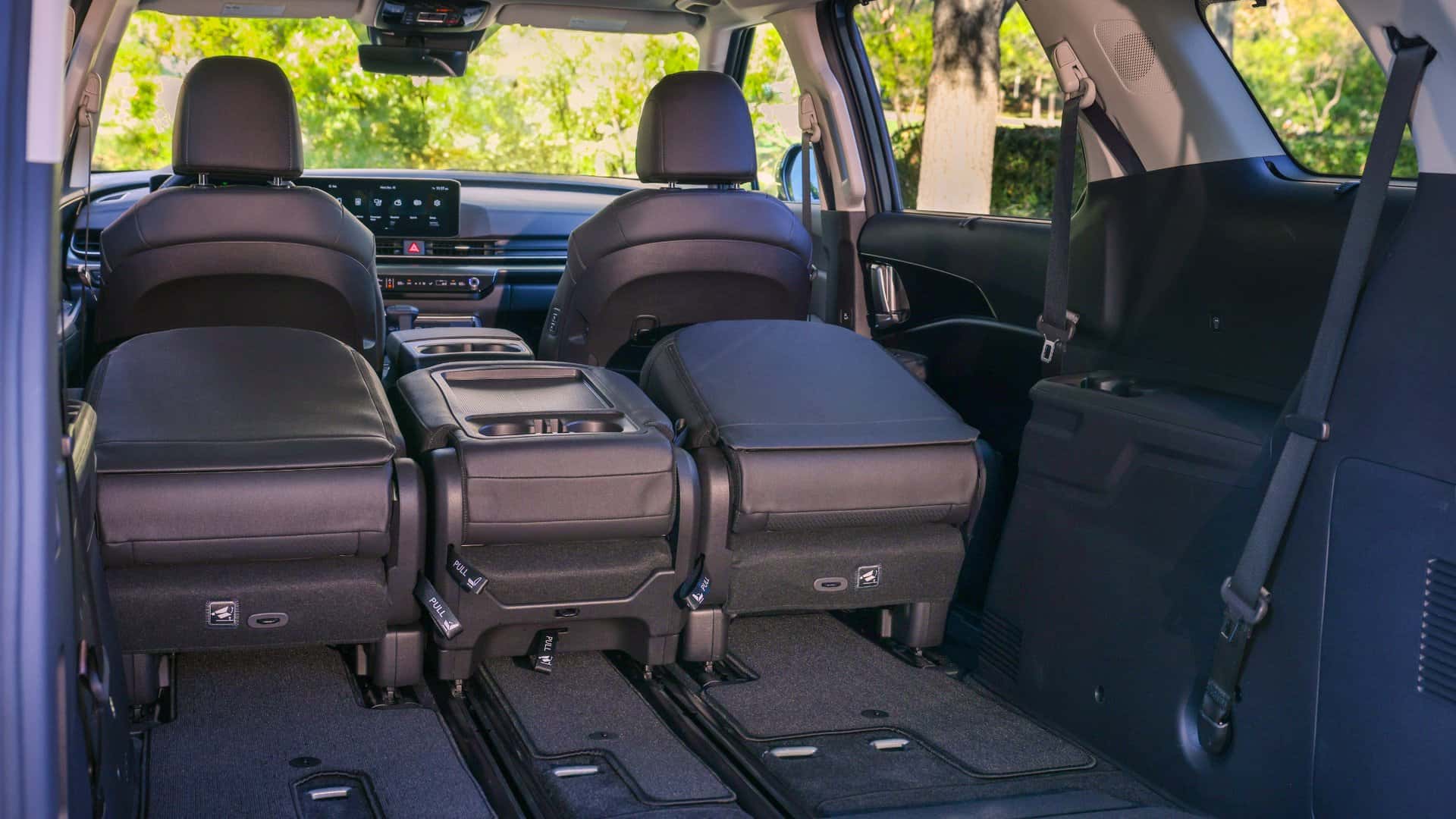

Cargo capacity is defined by flexible seating configurations. Minimum cargo volume is 40.2 cubic feet. Maximum cargo volume is 145.1 cubic feet when seating is adjusted to accommodate larger loads. These figures support a range of cargo and passenger arrangements.

Suspension Design and Steering Response

The front suspension uses a MacPherson® strut design. The rear suspension uses a multi-link configuration. This combination supports ride stability and controlled wheel movement across varying road surfaces. Gas-type shock absorbers are used on both front and rear systems.

Steering is managed by a column-mounted electric power steering system. The steering ratio is 14.23:1. The system requires 3.0 turns from lock to lock. This configuration provides predictable steering input and supports maneuverability in both low-speed and higher-speed driving conditions.

Brake System and Mechanical Control

The 2026 Kia Carnival uses ventilated disc brakes in the front and solid disc brakes in the rear. Brake size is 12.8 inches for both front and rear discs. The system includes an electronic parking brake, which replaces a traditional mechanical handbrake.

The brake booster uses a tandem fixed-seal type design with a booster ratio of 10.0:1. The booster diameter measures 11.0 inches. These specifications support consistent braking force distribution and controlled stopping performance under standard driving conditions.

Wheels, Tires, and Weight Distribution

Wheel and tire configurations vary by trim level. LX and LXS trims use 17-inch alloy wheels with P235/65R17 tires. EX, SX, and SX Prestige trims use 19-inch alloy wheels with P235/55R19 tires. All trims include a temporary steel spare wheel fitted with a T135/90D17 tire.

Curb weight varies based on trim and seating configuration. The LX trim with seven-passenger seating has a minimum curb weight of 4,555 pounds. The SX Prestige trim with seven-passenger seating has a minimum curb weight of 4,771 pounds. Eight-passenger configurations range from 4,630 pounds on the LXS trim to 4,810 pounds on the SX trim. These values reflect differences in equipment and seating configurations.

Towing Capability and Load Ratings

The 2026 Kia Carnival has a braked towing capacity of 3,500 pounds. Unbraked towing capacity is rated at 1,000 pounds. These figures apply across all trims. The gross vehicle weight rating is 6,283 pounds.

Roof rack load capacity is rated at 165 pounds. This specification supports the use of compatible roof-mounted cargo systems. These load ratings define the operational limits for towing and cargo transport.

Electrical System and Power Management

The 2026 Kia Carnival uses a 12-volt maintenance-free battery system. LX and LXS trims without a power liftgate use an 80 amp-hour battery rated at 660 cold-cranking amps. EX, SX, and SX Prestige trims with a power liftgate use a 90 amp-hour battery rated at 850 cold-cranking amps.

The alternator is rated at 13.5 volts and 180 amps across all trims. The starter motor is rated at 12 volts and 1.7 kilowatts. These components support vehicle start-up, onboard electronics, lighting systems, and accessory functions.

Integrated Technology and Interior Equipment

The SX Dark Edition Package includes full LED projection lighting, LED rear combination lamps, leather seat trim, and an 11-inch head-up display. It also includes a 12-speaker Bose® premium audio system with an external amplifier and subwoofer, along with a heated steering wheel and a digital rearview mirror with integrated HomeLink functionality.

The SX Prestige Seat Package includes second-row power lounge seats with adjustable leg extensions and wing-out headrests. It also includes heated and ventilated second-row seating, ambient interior lighting, high-gloss interior trim, and laminated second-row windows. These features enhance second-row passenger support and cabin isolation.
