2026 Kia EV9 near Rock Hill, SC
The 2026 Kia EV9 is engineered as a three-row electric SUV with multiple drivetrain configurations, high-capacity battery systems, and a chassis structure designed to support passenger space, towing capability, and long-distance electric driving. The lineup includes Light, Light Long Range, Wind, Land, and GT-Line™ trims, each equipped with a permanent magnet synchronous motor system and a lithium-ion high-voltage battery. Rear-wheel-drive and all-wheel-drive layouts are available across the range, allowing the 2026 Kia EV9 to balance efficiency, acceleration, and utility depending on trim selection.
The 2026 Kia EV9 uses a dedicated electric platform with a long 122.0-inch wheelbase and an overall length of 197.2 inches. The platform supports three-row seating while maintaining cargo flexibility and stable driving characteristics. Across the lineup, the 2026 Kia EV9 integrates fast-charging capability, ventilated disc braking systems, electronically controlled steering, and advanced suspension components intended for large electric vehicle operation.
Electric Motor Configurations and Output Specifications
The Light trim uses a rear-mounted permanent magnet synchronous motor producing 215 horsepower and 258 lb-ft. of torque. This configuration operates through a rear-wheel-drive layout and focuses on efficient electric driving with direct torque delivery. The Light Long Range trim also uses rear-wheel drive and generates 201 horsepower with 258 lb-ft. of torque.
The Wind, Land, and GT-Line™ trims transition to dual-motor all-wheel-drive systems. These trims use front and rear permanent magnet synchronous motors that combine for 379 horsepower. Wind and Land models generate 443 lb.-ft. of torque with Feature on Demand disabled and 516 lb-ft. with the system activated. The GT-Line™ produces 516 lb.-ft. of torque as standard.
Front motor output in AWD trims reaches 189.5 horsepower. Rear motor output also measures 189.5 horsepower. The electric motors deliver torque at low rpm ranges, supporting rapid acceleration and immediate throttle response. The GT-Line™ reaches 0 to 60 mph in 5.0 seconds, while the Wind and Land trims complete the same acceleration run in 5.7 seconds with Feature on Demand disabled and 5.0 seconds with it enabled. The Light trim reaches 60 mph in 7.7 seconds, and the Light Long Range trim completes the run in 8.8 seconds.
Intermediate acceleration figures also highlight the electric power delivery of the 2026 Kia EV9. The GT-Line™ accelerates from 19 to 44 mph in 1.9 seconds and from 37 to 62 mph in 2.8 seconds. Maximum speed reaches 124 mph for AWD models, while rear-wheel-drive variants achieve between 115 and 118 mph depending on trim configuration.
High-Voltage Battery Architecture and Energy Storage
The 2026 Kia EV9 uses lithium-ion battery systems across all trims. The Light trim carries a 76.1-kWh battery pack operating at 632 volts with a 120.6 Ah capacity. Battery power output measures 182 kW. This battery pack weighs 1,021.4 pounds and uses a pack-level energy density of 200.7 Wh/ℓ.
The Light Long Range, Wind, Land, and GT-Line™ trims use a larger 99.8-kWh battery pack operating at 552 volts with a 180.9 Ah capacity. Battery power output increases to 318 kW. These larger battery packs weigh 1,248.9 pounds and use a pack-level energy density of 263.3 Wh/ℓ.
All trims maintain a battery volume of 379 liters and use a 60 Ah, 12-volt auxiliary battery. Cell-level energy density measures 670 Wh/ℓ throughout the lineup. The high-voltage system is integrated into the vehicle’s floor structure, supporting lower center-of-gravity placement and improved cabin packaging efficiency.
Charging Hardware and Fast Charging Performance
Charging capability remains one of the primary technical characteristics of the 2026 Kia EV9 lineup. Every trim includes a 10.9-kW onboard charger and a low-voltage DC-DC converter with 2.4-kW maximum power output. Maximum power density measures 1.4 kW/ℓ.
The Light trim requires approximately 6 hours and 45 minutes for AC charging with an 11-kW EVSE operating at 240 volts and 48 amps. Larger battery trims require approximately 8 hours and 45 minutes under the same charging conditions.
DC fast charging performance allows the 2026 Kia EV9 to support shorter charging sessions during highway travel. Using a 350-kW EVSE, the Light trim completes charging in approximately 20 minutes. The Light Long Range, Wind, Land, and GT-Line™ trims complete charging in approximately 24 minutes. With a 50-kW CCS charging setup, charging time ranges from 63 minutes in the Light trim to 83 minutes in larger battery trims.
Peak charging power reaches 235 kW in the Light trim and 210 kW in the remaining configurations. These charging figures support extended-distance operation while reducing downtime between charging sessions.
Range Targets and Efficiency Measurements
The 2026 Kia EV9 lineup provides multiple all-electric range targets depending on drivetrain configuration and battery selection. The Light rear-wheel-drive trim targets 230 miles of electric range. The Light Long Range trim targets 305 miles, making it the highest-range configuration in the lineup.
All-wheel-drive Wind and Land trims target 283 miles of range. The GT-Line™ targets 280 miles due to its larger wheel setup and performance-oriented calibration.
Efficiency figures vary across the lineup. The Light trim achieves 101 MPGe city, 76 MPGe highway, and 88 MPGe combined. The Light Long Range trim achieves 100 MPGe in the city, 78 MPGe on the highway, and 89 MPGe combined.
Wind and Land AWD trims achieve 94 MPGe city, 75 MPGe highway, and 84 MPGe combined. The GT-Line™ returns 92 MPGe city, 72 MPGe highway, and 82 MPGe combined. These ratings reflect the relationship between battery size, drivetrain configuration, wheel dimensions, and vehicle weight.
Disclaimer: Based on EPA estimates on a full battery charge. Actual range will vary with options, driving conditions, driving habits, vehicle maintenance, charging practice, battery age, weather, temperature, and your vehicle’s condition. Battery capacity will decrease with time and use. For more information on range, please see www.fueleconomy.gov.
Exterior Measurements and Structural Dimensions
The 2026 Kia EV9 maintains consistent platform dimensions across all trims. Wheelbase measures 122.0 inches throughout the lineup. Overall width measures 77.9 inches. Length ranges from 197.2 inches to 197.4 inches depending on trim level.
Ride height differs slightly between rear-wheel-drive and all-wheel-drive models. Rear-wheel-drive trims provide 7.0 inches of minimum ground clearance, while AWD trims increase clearance to 7.8 inches. Roof height also changes depending on trim and roof rail configuration. GT-Line™ models measure 70.1 inches tall with roof rails.
Track measurements vary slightly between trim levels. Rear-wheel-drive models use a 67.0-inch front track and 67.5-inch rear track. AWD Land and GT-Line™ trims use a 66.6-inch front track and 67.1-inch rear track.
Approach angle measures 20.0 degrees and the departure angle measures 22.8 degrees across the lineup. Front and rear overhang dimensions remain close to 34.3 inches and 40.9 inches, respectively.

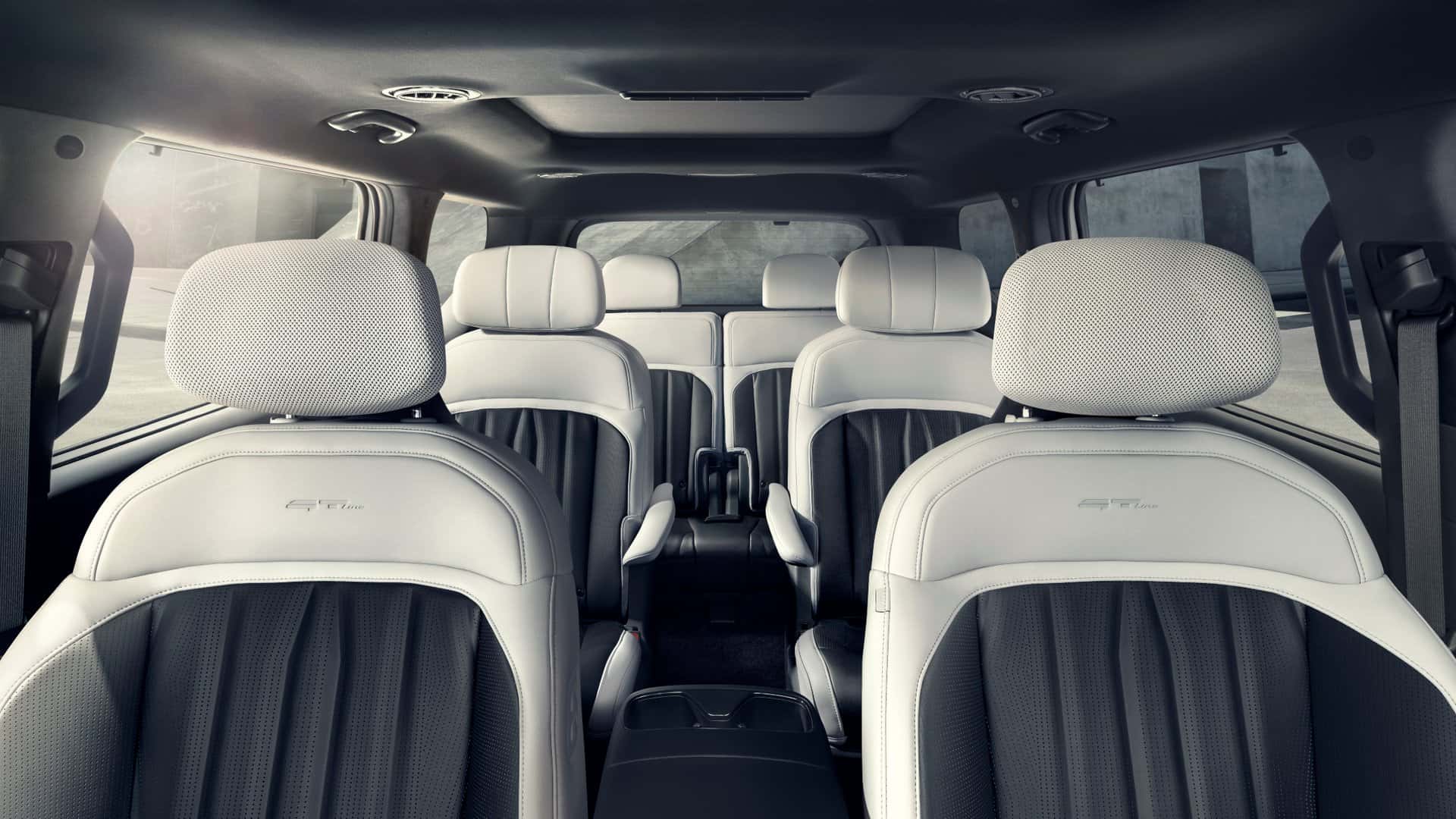

Passenger Capacity and Interior Packaging
The 2026 Kia EV9 is configured as either a six-passenger or seven-passenger SUV depending on trim and seating arrangement. Passenger volume reaches 158.8 cubic feet in seven-passenger configurations and 160.3 cubic feet in captain’s chair layouts.
Front-row legroom measures 41.4 inches. Second-row legroom measures 42.8 inches. Third-row legroom ranges from 29.9 inches to 32.0 inches depending on second-row seating type. Front shoulder room measures 61.6 inches, while second-row shoulder room measures 60.0 inches. Third-row shoulder room measures 55.0 inches.
Headroom measurements vary according to roof and sunroof configuration. Models equipped with dual sunroofs provide 39.6 inches of front headroom and 38.8 inches in the second row. Third-row headroom measures 39.5 inches.
Cargo capacity behind the third row measures 20.2 cubic feet. Capacity expands to 43.5 cubic feet behind the second row and 81.7 cubic feet behind the first row. Rear-wheel-drive models include a front storage compartment with 3.2 cubic feet of capacity and an 88-pound payload rating. AWD models include a 1.8-cubic-foot frunk with a 44-pound payload limit.
Suspension Engineering and Steering Systems
The 2026 Kia EV9 uses a MacPherson® strut front suspension combined with a dual lower arm design. Rear suspension uses a five-link multi-link layout across all trims. Shock absorbers include smart frequency damper valve technology and hydraulic rebound stop systems intended to improve ride control and suspension response.
The Land and GT-Line™ trims also integrate rear self-leveling suspension components. These systems help maintain ride height consistency when carrying additional passengers or cargo.
Steering is managed through a rack-mounted motor-driven power steering system using a rack-and-pinion design. Steering ratio measures 16.02:1 across the lineup. Lock-to-lock steering travel measures 2.93 turns. Turning circle radius measures 20.3 feet curb-to-curb.
Braking Hardware and Chassis Control
All 2026 Kia EV9 trims use ventilated disc brakes at both front and rear axles. Front brake diameter measures 14.2 inches, while the rear brake diameter measures 13.6 inches. The braking system uses a Mando iEB integrated brake booster system combined with an electric parking brake.
Braking distance from 62 mph to 0 mph measures 128 feet across the lineup. The consistent braking figures demonstrate stable stopping capability despite differences in weight and drivetrain configuration between trims.
The chassis calibration of the 2026 Kia EV9 also benefits from the battery pack placement underneath the floor structure. This layout contributes to improved weight distribution and lower center-of-gravity positioning.
Towing Ratings and Wheel Configurations
Towing capability differs according to drivetrain and trim level. Rear-wheel-drive trims tow up to 1,000 pounds without trailer brakes and 2,000 pounds with trailer brakes. AWD models increase towing capacity to 1,653 pounds without trailer brakes.
Properly equipped Land and GT-Line™ trims support towing capacities ranging from 3,500 pounds to 5,000 pounds. These configurations provide additional utility for trailer and cargo applications while maintaining electric drivetrain performance.
Wheel dimensions increase throughout the lineup. The Light Light Long Range, and Wind trims use 19-inch wheels. Land trims use 20-inch wheels. GT-Line™ trims use 21-inch wheels.
Curb weight ranges from 5,106 pounds in the Light trim to 5,851 pounds in the GT-Line™. Gross vehicle weight ratings range from 6,415 pounds in rear-wheel-drive trims to 7,187 pounds in AWD configurations.
Visit Courage Kia to Schedule a Test Ride
Drivers interested in a three-row electric SUV with multiple battery configurations, fast charging capability, and available all-wheel-drive performance can explore the 2026 Kia EV9 at Courage Kia near Rock Hill, SC. The 2026 Kia EV9 combines high-voltage battery architecture, strong towing capability, and extensive passenger space within a dedicated electric SUV platform. Available trims allow drivers to compare range targets, wheel configurations, seating layouts, and drivetrain specifications in detail. The combination of a 305-mile targeted range capability and an available 516 lb-ft. of torque, and rapid DC fast charging supports both daily operation and extended-distance travel. A test drive also provides the opportunity to evaluate acceleration performance, suspension tuning, braking response, and interior space across the 2026 Kia EV9 lineup.
