2026 Kia K5 near Rock Hill, SC
The 2026 Kia K5 is engineered with two distinct powertrain configurations that define its performance range across trim levels. The LXS, GT-Line™, and EX trims are equipped with a 2.5-liter inline four-cylinder THETA-III engine using Gasoline Direct Injection. This engine has a displacement of 2,497 cubic centimeters with a bore and stroke of 88.5 millimeters by 101.5 millimeters. It operates with a compression ratio of 13.0 to 1, supporting efficient combustion and stable power delivery across standard driving conditions.
This naturally aspirated configuration produces 191 horsepower at 6,100 revolutions per minute and 181.5 pound-feet of torque at 4,000 revolutions per minute. The engine block and cylinder head are constructed from aluminum, reducing overall weight while maintaining structural rigidity. The valve system uses a dual overhead camshaft layout with four valves per cylinder, allowing for consistent airflow and combustion control.
The GT trim introduces a higher-output 2.5-liter turbocharged inline four-cylinder engine. This configuration incorporates both Gasoline Direct Injection and Multi-Port Injection, improving fuel atomization and combustion efficiency under higher load conditions. The compression ratio is reduced to 10.5 to 1 to accommodate forced induction. This engine generates 290 horsepower at 5,800 revolutions per minute and 311 pound-feet of torque available from 1,650 to 4,000 revolutions per minute. This broader torque range supports sustained acceleration and improved responsiveness across varying speeds.
Both engine configurations use a water-cooled circulation system with a centrifugal belt-driven water pump. Coolant capacity varies slightly, with the standard engine requiring 3.9 liters for the chassis and 3.8 liters for the engine, while the turbocharged engine uses 4.55 liters for the chassis and 3.3 liters for the engine. Emission classifications include SULEV 30 for standard engines and ULEV 70 for the turbocharged configuration. All trims operate on unleaded gasoline with a minimum octane rating of 87.
Transmission Systems and Gear Ratios
The drivetrain of the 2026 Kia K5 is designed to align with each engine configuration. Standard trims use an eight-speed automatic transmission with a torque converter. This transmission is calibrated to provide smooth gear transitions and consistent acceleration. The gear ratios begin at 4.717 to 1 in first gear and progress through intermediate ratios down to 0.635 to 1 in eighth gear. Reverse gear is set at 3.239 to 1, ensuring controlled maneuvering in low-speed conditions.
Final drive ratios differ based on drivetrain configuration. Front-wheel-drive models use a 3.195 to 1 ratio, while all-wheel-drive variants available on the GT-Line™ trim use a 3.510 to 1 ratio. These ratios are selected to balance fuel efficiency and traction.
The GT trim uses an eight-speed wet dual-clutch transmission. This system replaces the torque converter with a wet friction clutch, allowing for faster gear engagement and improved power transfer under high torque conditions. The gear ratios in this configuration include a 3.643 to 1 first gear and extend through an eighth gear ratio of 0.660 to 1. Reverse gear is set at 3.697 to 1. The final drive ratios for the dual-clutch system are 4.077 to 1 and 2.944 to 1, supporting both acceleration and highway efficiency.
Drivetrain Configuration and Power Distribution
Front-wheel drive is standard across the LXS, GT-Line™, and EX trims. The GT-Line™ trim offers an available all-wheel-drive system, which distributes power between the front and rear axles to improve traction on variable surfaces. Weight distribution for front-wheel-drive models ranges from 60 percent to 61 percent at the front and 39 percent to 40 percent at the rear. The all-wheel-drive configuration maintains a similar distribution of 60 percent front and 40 percent rear.
Curb weight varies by trim and drivetrain. Front-wheel-drive models range from 3,230 pounds in the LXS to 3,596 pounds in the GT trim. The all-wheel-drive GT-Line™ model has a curb weight of 3,463 pounds. Gross vehicle weight ratings extend from 4,365 pounds in standard trims to 4,608 pounds in the GT trim, reflecting differences in performance components and structural reinforcement.
Exterior Dimensions and Structural Proportions
The exterior dimensions of the 2026 Kia K5 remain consistent across all trims, supporting uniform handling characteristics and aerodynamic performance. The vehicle has a wheelbase of 112.2 inches, which contributes to stability and interior space distribution. Overall length is measured at 193.1 inches, while width is 73.2 inches and height is 56.9 inches.
Track width varies slightly depending on trim. The front track ranges from 63.4 inches to 64.3 inches, while the rear track ranges from 63.7 inches to 64.6 inches. Front and rear overhangs are 37.2 inches and 43.7 inches, respectively. Ground clearance is set at 5.3 inches across all models, maintaining a consistent center of gravity.
The coefficient of drag is measured at 0.27, indicating a streamlined body structure designed to reduce aerodynamic resistance. This contributes to improved fuel efficiency and stability at higher speeds.
Interior Measurements and Cabin Volume

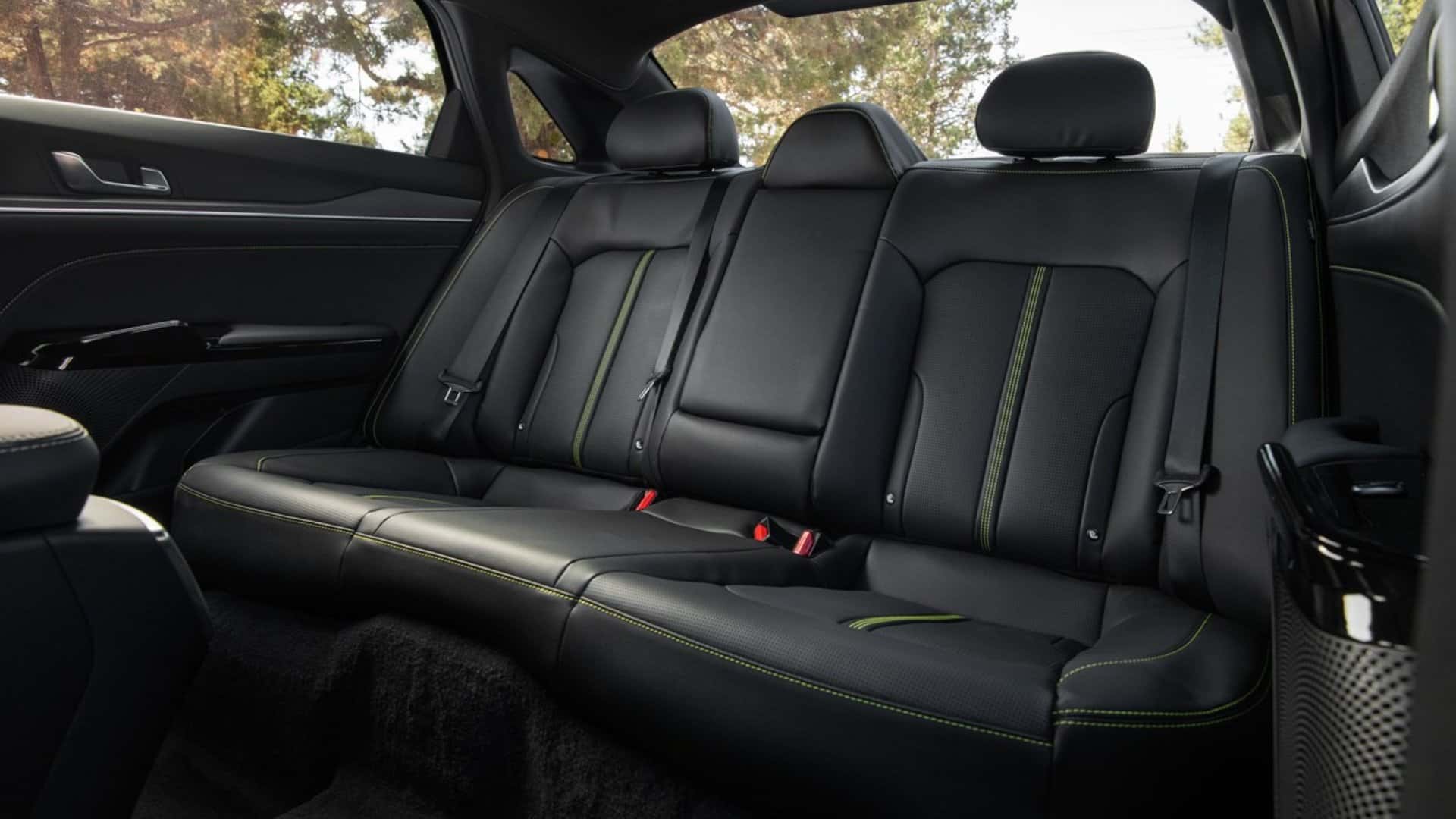

The interior of the 2026 Kia K5 is configured to maximize usable space while maintaining structural efficiency. Total interior volume is 121.3 cubic feet, with passenger volume accounting for 105.3 cubic feet. Cargo capacity is measured at 15.6 cubic feet.
Front headroom is 40.2 inches in standard configurations, while rear headroom is 37.8 inches. Models equipped with a panoramic sunroof adjust front headroom to 38.4 inches and rear headroom to 37.4 inches. Front legroom is 46.1 inches, and rear legroom is 35.2 inches. Shoulder room measures 58.0 inches in the front and 56.1 inches in the rear. Hip room is consistent at 56.6 inches for both front and rear seating positions.
Passenger capacity remains consistent across all trims, with seating designed to accommodate five occupants. The cabin layout prioritizes proportional spacing and consistent ergonomics for both driver and passengers.
Suspension Design and Steering Mechanics
The suspension system of the 2026 Kia K5 uses a MacPherson® strut design in the front and a multi-link configuration in the rear. This combination supports balanced ride comfort and handling precision. Standard trims use gas shock absorbers tuned for stability and road isolation.
The GT trim introduces sport-tuned suspension components, including recalibrated struts and multi-link geometry. These adjustments enhance cornering stability and reduce body roll during higher-speed driving.
Steering systems vary by trim. Standard models use a column-mounted, motor-driven power steering system, which integrates an electric motor for assistance. The GT trim uses a rack-mounted motor-driven power steering system, providing more direct steering input. Steering ratios are 13.27 to 1 for standard models and 12.35 to 1 for the GT trim. The number of turns from lock to lock is 2.6 in standard models and 2.44 in the GT trim. The turning circle remains consistent at 36.0 feet across all configurations.
Braking Systems and Mechanical Control
Braking performance is managed by a hydraulic, vacuum-assisted system. All trims use ventilated disc brakes at the front and solid disc brakes at the rear. Standard brake dimensions are 305 millimeters at the front and 284 millimeters at the rear. The GT trim uses larger brake components, measuring 345 millimeters at the front and 325 millimeters at the rear, to support increased performance capability.
An electronic parking brake with auto-hold functionality is standard across all trims. This system maintains braking force when the vehicle is stationary, reducing driver input during stop-and-go conditions.
Wheel and Tire Configurations
Wheel and tire specifications vary depending on trim level. The LXS trim uses 16-inch alloy wheels with tire size P205/65R16. The GT-Line™ and EX trims use 18-inch alloy wheels with tire size P235/45R18. The GT trim uses 19-inch alloy wheels with tire size P245/40R19.
Each trim includes a temporary spare tire mounted on a steel wheel. Spare tire sizes vary slightly, including T125/80D16 for standard trims and T135/80D18 for the GT trim. These configurations support balanced traction, ride quality, and handling performance.
Integrated Technology and Driver Interface Systems

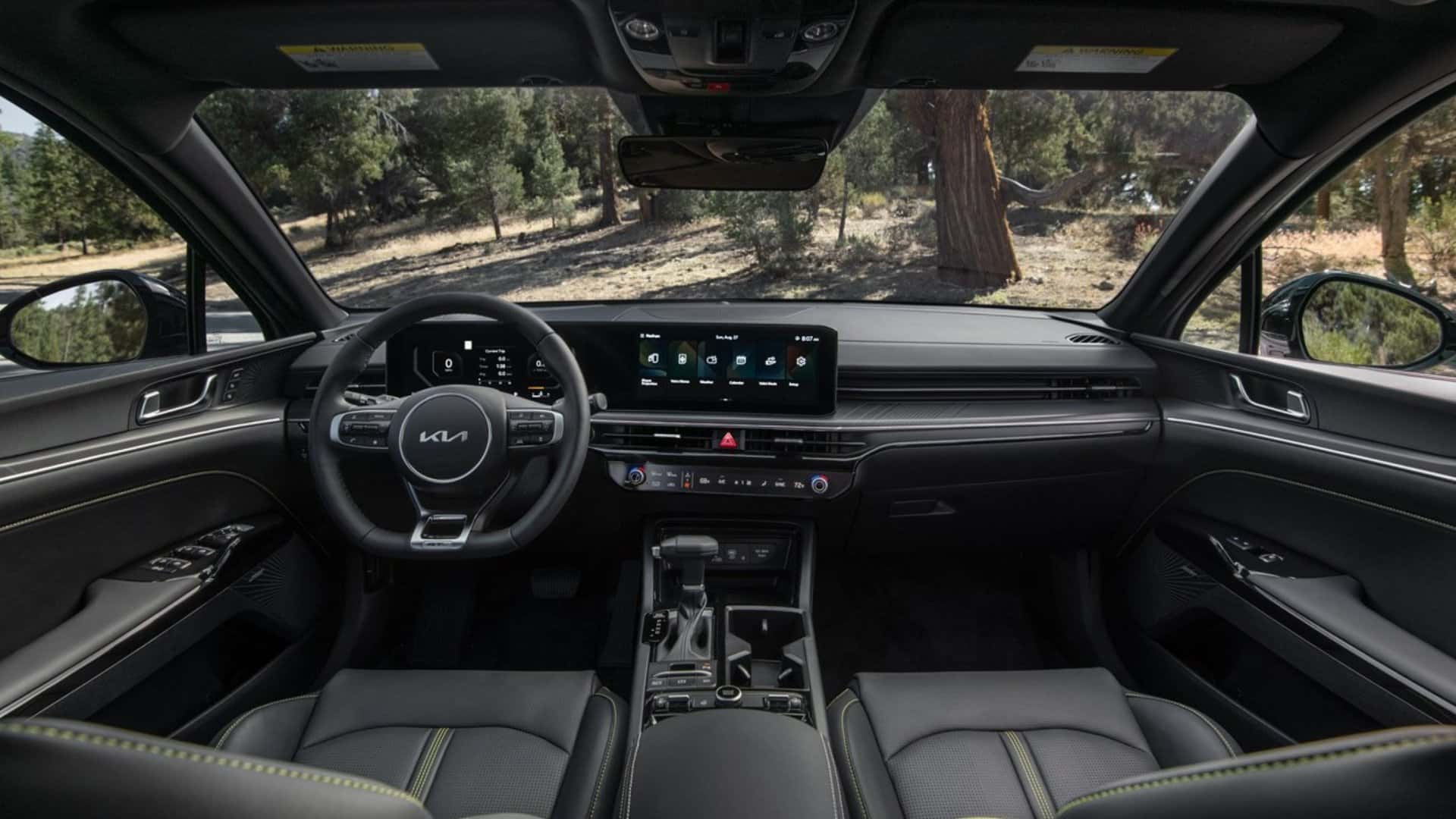

The 2026 Kia K5 incorporates several technology systems designed to support driver interaction and cabin functionality. Available features include a 12.3-inch TFT instrument cluster with a curved display configuration. This system presents vehicle data in a structured digital format, allowing for clear visibility of speed, engine performance, and driver assistance indicators.
Digital Key 2.0 is available with Near Field Communication and Bluetooth® Low Energy connectivity. This system allows vehicle access and operation through compatible devices. Audio output is supported by an available Bose® premium system with 12 speakers, delivering consistent sound distribution throughout the cabin.
Additional systems include Active Sound Design, which modifies in-cabin audio feedback based on driving conditions. The Surround View Monitor provides a composite overhead view of the vehicle, assisting with parking and low-speed maneuvering. The Blind View Monitor displays side camera feeds within the instrument cluster during lane changes.
Driver Assistance and Safety Integration
The 2026 Kia K5 includes multiple driver assistance systems designed to support situational awareness and vehicle control. Parking Collision Avoidance Assist-Reverse monitors the area behind the vehicle and can apply braking if an obstacle is detected. Park Distance Warning-Side provides alerts when objects are detected near the sides of the vehicle.
The Surround View Monitor enhances visibility by combining camera inputs into a single display. The Blind View Monitor supports lane changes by providing visual confirmation of adjacent lanes. These systems operate together to assist with both low-speed and transitional driving scenarios.
Fuel Economy and Operational Efficiency
Fuel economy varies based on engine type and drivetrain configuration. Front-wheel-drive models with the standard engine achieve an estimated 26 miles per gallon in city driving and 37 miles per gallon on the highway, with a combined rating of 30 miles per gallon. All-wheel-drive configurations in the GT-Line™ trim produce slightly lower figures, with 24 miles per gallon in the city and 33 miles per gallon on the highway, resulting in a combined rating of 27 miles per gallon.
The GT trim, equipped with a dual-clutch transmission and turbocharged engine, is rated at 23 miles per gallon in city driving and 33 miles per gallon on the highway, with a combined rating of 27 miles per gallon. All models use a fuel tank with a capacity of 15.8 gallons, supporting extended driving range between refueling intervals.
Disclaimer: Based on EPA estimates. Actual mileage will vary with options, driving conditions, driving habits, and your vehicle’s condition. For more information, please see www.fueleconomy.gov.
