2026 Kia Sorento near Rock Hill, SC
The 2026 Kia Sorento uses a consistent 2.5-liter four-cylinder engine architecture across all trims, with two distinct performance outputs. LX and S trims use a naturally aspirated Gasoline Direct Injection engine that produces 191 horsepower at 6,100 rpm and 195.2 lb-ft of torque. EX, SX, and SX Prestige trims use a turbocharged version of the same 2.5-liter engine, increasing output to 281 horsepower at 5,800 rpm and 311.6 lb-ft of torque.
All configurations share a displacement of 2,497 cc, with an 88.5 mm bore and 101.5 mm stroke. The naturally aspirated engine operates with a 13.0:1 compression ratio, while the turbocharged engine uses a 10.5:1 ratio to accommodate forced induction. Each engine includes a DOHC 16-valve system with hydraulic lash adjustment and a distributorless ignition system with plug-top coil design. Fuel delivery combines Gasoline Direct Injection with Multi-Point Injection to improve combustion control. Emission systems vary slightly between trims, with EGRC used on lower trims and TC/CAC on turbocharged models. Lubricant oil capacity is rated at 6.8 liters across all trims, while cooling capacity measures 3.8 liters for naturally aspirated engines and 3.3 liters for turbocharged configurations.
Transmission Systems and Drivetrain Architecture
Transmission systems vary by trim level and engine configuration. LX and S trims use an 8-speed automatic transmission with a torque converter. This transmission includes a wide ratio spread, with a 4.487:1 first gear and a 0.635:1 eighth gear, allowing both low-speed torque delivery and efficient highway operation. Reverse gear is set at 3.081:1. Final drive ratios are 3.798:1 for front-wheel-drive models and 4.081:1 for all-wheel-drive variants.
The EX, SX, and SX Prestige trims use an 8-speed dual-clutch transmission. This system uses a wet friction clutch and is calibrated for higher torque output from the turbocharged engine. The first gear ratio is 3.429:1, while eighth gear is 0.653:1. Reverse gear is 3.967:1. The dual clutch design allows direct gear engagement and consistent power delivery.
Front-wheel drive is standard on LX and available on other trims, while all-wheel drive is offered or standard depending on trim level. The AWD system is an Active On-Demand 4WD system that adjusts torque distribution between front and rear axles as needed. This system supports traction management under varying road conditions without requiring manual driver input.
Measured Performance and Dynamic Output
Performance figures show clear differences between engine options. Naturally aspirated LX and S trims reach 0 to 100 kph in 9.8 seconds with front-wheel drive and 10.3 seconds with all-wheel drive. Turbocharged EX and SX trims reduce acceleration time to 7.4 seconds for front-wheel drive and 7.5 seconds for all-wheel drive. SX Prestige maintains a 7.5-second acceleration time with all-wheel drive.
Mid-range acceleration also reflects engine output differences. The 80 to 120 kph interval is completed in 6.7 seconds for front-wheel-drive LX and S trims and 7.0 seconds for their all-wheel-drive counterparts. Turbocharged trims complete the same interval in 4.4 seconds for front-wheel drive and 4.6 seconds for all-wheel drive.
Maximum speed ratings are listed at 203 for naturally aspirated trims and 210 for turbocharged trims. Braking performance is consistent across all trims, with a 60 mph to 0 stopping distance of 132 feet. These figures indicate consistent braking system calibration regardless of engine output.
Structural Dimensions and Exterior Proportions
The 2026 Kia Sorento maintains consistent exterior dimensions across all trims. The wheelbase measures 110.8 inches, supporting interior space distribution and ride stability. Overall length is 189.6 inches, width is 74.8 inches, and standard height is 66.7 inches. With a roof rack installed, height increases slightly to 66.9 inches.
Front and rear overhangs measure 36.4 inches and 42.3 inches, respectively. Track width varies slightly by trim, with front track measurements ranging from 64.5 inches to 65.0 inches and rear track measurements ranging from 64.8 inches to 65.4 inches. Ground clearance is rated at 6.9 inches for applicable configurations.
Approach angle is 16.8 degrees, departure angle is 22.1 degrees, and ramp breakover angle is 17.0 degrees. These measurements define the vehicle’s geometry in relation to road surfaces and minor elevation changes.

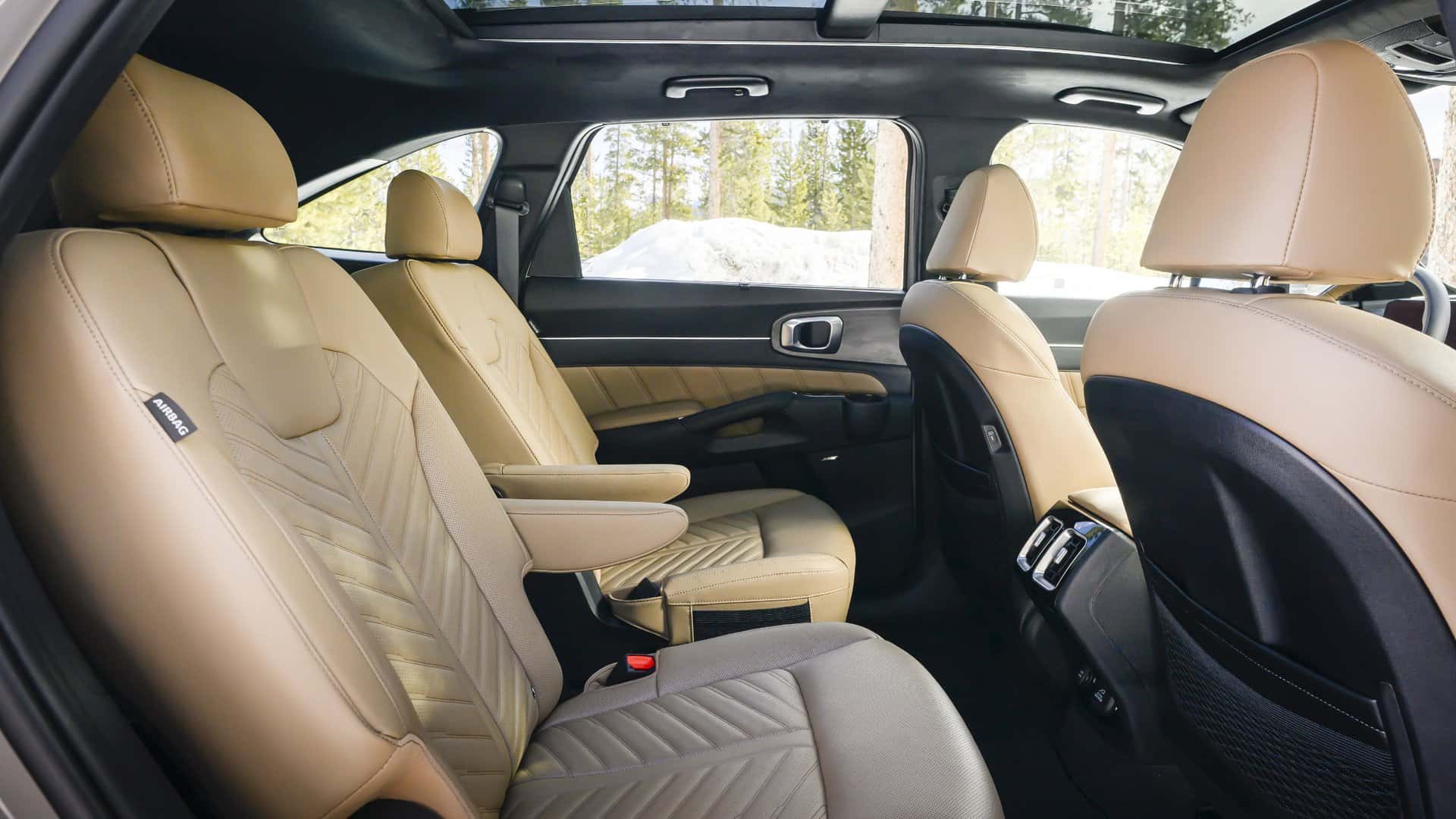

Interior Space Allocation and Seating Configuration
Interior packaging supports either seven-passenger or six-passenger layouts depending on trim. LX and S trims use a three-row, seven-passenger configuration. EX, SX, and SX Prestige trims use a six-passenger layout with second-row captain’s chairs.
Headroom measurements are consistent across trims. Front headroom is 40.3 inches, second-row headroom is 39.1 inches, and third-row headroom is 36.8 inches. Legroom is measured at 41.4 inches in the front row, 41.7 inches in the second row, and 29.6 inches in the third row.
Shoulder room measures 59.1 inches in the front row, 58.1 inches in the second row, and 53.0 inches in the third row. Hip room measures 55.6 inches in the front row, 55.1 inches in the second row, and 42.5 inches in the third row. These measurements define passenger space across all seating positions without variation between trims.
Cargo Capacity and Storage Metrics
Cargo capacity is measured using both SAE and VDA standards. SAE cargo volume behind the first row is 75.5 cubic feet across all trims. Behind the second row, SAE cargo capacity ranges from 38.5 cubic feet to 45.0 cubic feet depending on configuration. Behind the third row, cargo volume is 12.6 cubic feet.
VDA measurements show slight variation across trims. LX and S trims provide 70.5 cubic feet behind the first row, while EX, SX, and SX Prestige trims provide 72.1 cubic feet. Behind the second row, VDA cargo capacity ranges from 21.5 cubic feet to 28.7 cubic feet. Behind the third row, cargo capacity is 6.3 cubic feet.
These figures reflect the vehicle’s three-row design and the impact of seating configuration on available storage space.
Suspension Design and Steering Calibration
The 2026 Kia Sorento uses a front McPherson strut suspension and a rear multi-link suspension across all trims. This setup provides consistent geometry for ride control and wheel movement. The multi-link rear suspension allows independent wheel articulation, which supports stability during cornering and uneven road conditions.
Steering is handled by a Column-Mounted Motor Driven Power Steering system. The steering ratio is 13.72:1, providing a balance between steering input and wheel response. The steering system requires 2.62 turns from lock to lock. The curb-to-curb turning radius is 18.96 feet, allowing controlled maneuverability in confined areas.
Brake System and Component Specifications
All trims use a ventilated disc brake system on both the front and rear axles. Front brake discs measure 12.8 inches, while rear brake discs measure 12.0 inches. The brake booster size is 11.6 inches, and the master cylinder size is 0.88 inches. These components remain consistent across all trims, indicating a unified braking system design.
Stopping distance from 60 mph to zero is measured at 132 feet. This figure reflects braking system calibration and vehicle weight distribution rather than engine output.
Wheel, Tire, and Contact Patch Configurations
Wheel and tire specifications vary by trim. LX trims use 17-inch alloy wheels with 235/65R17 tires. S and EX trims use 18-inch alloy wheels with 235/60R18 tires. SX and SX Prestige trims use 20-inch alloy wheels with 255/45R20 tires.
All trims include a temporary spare tire. Differences in wheel size and tire width affect contact patch and road interaction, which may influence handling characteristics depending on trim level.
Towing Capability and Load Ratings
Towing capacity varies based on drivetrain and equipment. Front-wheel-drive trims are rated at 2,000 pounds for braked towing and 1,650 pounds for unbraked towing. EX and SX front-wheel-drive trims equipped with a towing package increase braked towing capacity to 3,500 pounds.
All-wheel-drive trims maintain a base braked towing capacity of 2,000 pounds and unbraked capacity of 1,650 pounds. With a towing package, EX and SX AWD trims are rated at 3,500 pounds. SX and SX Prestige AWD trims list 3,500 pounds, with an optional configuration allowing up to 4,500 pounds.
Gross Vehicle Weight Ratings range from 5,401 pounds to 5,512 pounds depending on drivetrain and configuration. Curb weight varies from 3,814 pounds to 4,250 pounds across trims.
Fuel Economy Estimates Across Configurations
Fuel economy varies by engine and drivetrain. LX and S front-wheel-drive models are estimated at 23 mpg in city driving, 31 mpg on the highway, and 26 mpg combined. All-wheel-drive versions of these trims are estimated at 23 mpg city, 28 mpg highway, and 25 mpg combined.
Turbocharged EX and SX front-wheel-drive trims are estimated at 20 mpg city, 29 mpg highway, and 23 mpg combined. Turbocharged all-wheel-drive trims, including SX Prestige, are estimated at 20 mpg city, 27 mpg highway, and 23 mpg combined.
These estimates reflect the increased output of the turbocharged engine and the additional mechanical load of all-wheel-drive systems.
Disclaimer: Based on EPA estimates. Actual mileage will vary with options, driving conditions, driving habits, and your vehicle’s condition. For more information, please see www.fueleconomy.gov.
Integrated Technology and Functional Equipment Packages
Available packages add functional equipment to specific trims. The S Panoramic Sunroof Package includes a full-length one-touch panoramic sunroof with a sliding sunshade and full LED interior lighting. This package is available on S and EX trims.
The EX Premium Package includes second-row captain’s chairs, a Bose® premium audio system, and a panoramic roof with a sliding sunshade. This package is exclusive to EX trims and modifies interior seating configuration and audio capability.
