2026 Kia Sportage near Columbia, SC
The 2026 Kia Sportage is engineered as a compact SUV with a consistent mechanical foundation across its trim range, emphasizing standardized performance, predictable handling characteristics, and practical dimensional efficiency. Every configuration is built around a single naturally aspirated powertrain and a unified transmission strategy, allowing buyers to focus on drivetrain selection and equipment levels without compromising mechanical integrity. The model’s specifications reflect a balance between output, efficiency, interior volume, and structural stability.
Engine Architecture and Combustion Strategy
All 2026 Kia Sportage trims are powered by a 2.5-liter inline four-cylinder gasoline engine utilizing a dual fuel delivery system. This system combines gasoline direct injection with multi-port injection, allowing fuel to be introduced under varying pressures and operating conditions. The engine displaces 2,497 cubic centimeters and features an aluminum block and aluminum cylinder head to reduce mass while maintaining thermal stability.
The bore and stroke dimensions measure 88.0 millimeters by 101.5 millimeters, a configuration that supports torque delivery across the mid-range engine speeds. A compression ratio of 13.0 to 1 promotes efficient combustion without requiring premium fuel, allowing the engine to operate on regular unleaded gasoline rated at 87 octane or higher. Maximum output is rated at 187 horsepower at 6,100 revolutions per minute, while peak torque reaches 178 pound-feet at 4,000 revolutions per minute.
Valve operation is managed through a 16-valve dual overhead camshaft configuration with continuously variable valve timing. Hydraulic lash adjusters are used to maintain valve clearance automatically, reducing mechanical wear and minimizing long-term service requirements. The engine’s cooling system holds 3.8 liters of coolant, while oil capacity measures 6.8 liters at factory fill and 5.8 liters during service intervals.
Transmission Calibration and Power Distribution
The 2026 Kia Sportage employs an 8-speed automatic transmission across all trims. This transmission is calibrated to deliver gradual ratio transitions that support smooth acceleration and controlled deceleration. Gear ratios are distributed to provide short initial gearing for launch performance and taller upper gears to reduce engine speed during sustained highway travel.
The first gear ratio of 4.717 to 1 enables responsive movement from a stop, while the eighth gear ratio of 0.635 to 1 supports fuel efficiency during steady cruising. Intermediate ratios are evenly spaced to prevent abrupt changes in engine load. Reverse gear is set at 3.239 to 1, offering controlled backing performance in confined spaces.
Front-wheel-drive models utilize a dry single-plate diaphragm clutch system. All-wheel-drive configurations rely on a torque converter-based clutch design that improves driveline durability and torque distribution under varying traction conditions. A final drive ratio of 3.648 to 1 is shared across all drivetrains, ensuring consistent throttle response regardless of configuration.
Drivetrain Options and Ground Clearance Characteristics
The 2026 Kia Sportage is offered in both front-wheel-drive and all-wheel-drive layouts. Front-wheel-drive configurations provide a lower curb weight and reduced mechanical complexity. All-wheel-drive variants introduce increased ride height and improved traction performance. Minimum ground clearance for front-wheel-drive models measures 7.1 inches, while all-wheel-drive versions increase clearance to 8.3 inches.
Approach, departure, and breakover angles are adjusted accordingly. All-wheel-drive models achieve an approach angle of 18.9 degrees and a departure angle of 26.9 degrees. Breakover angle reaches 19.3 degrees, supporting traversal over uneven surfaces without excessive underbody contact. These figures are consistent across all all-wheel-drive trims.
Exterior Dimensions and Structural Layout
The 2026 Kia Sportage is built on a platform with a 108.5-inch wheelbase, contributing to stable straight-line tracking and interior space optimization. Overall length measures 184.4 inches, while width is set at 73.4 inches. These proportions support maneuverability in urban environments without compromising interior volume.
Vehicle height varies depending on drivetrain and roof rail configuration. Front-wheel-drive models without roof rails measure 65.4 inches in height. All-wheel-drive versions equipped with roof rails reach a maximum height of 66.9 inches. Front and rear overhangs are fixed at 35.6 inches and 39.4 inches, respectively, contributing to predictable weight distribution.
Track width remains balanced, with front measurements ranging from 63.6 to 63.8 inches and rear measurements from 63.9 to 64.1 inches depending on trim. This balance supports lateral stability during cornering and lane transitions.

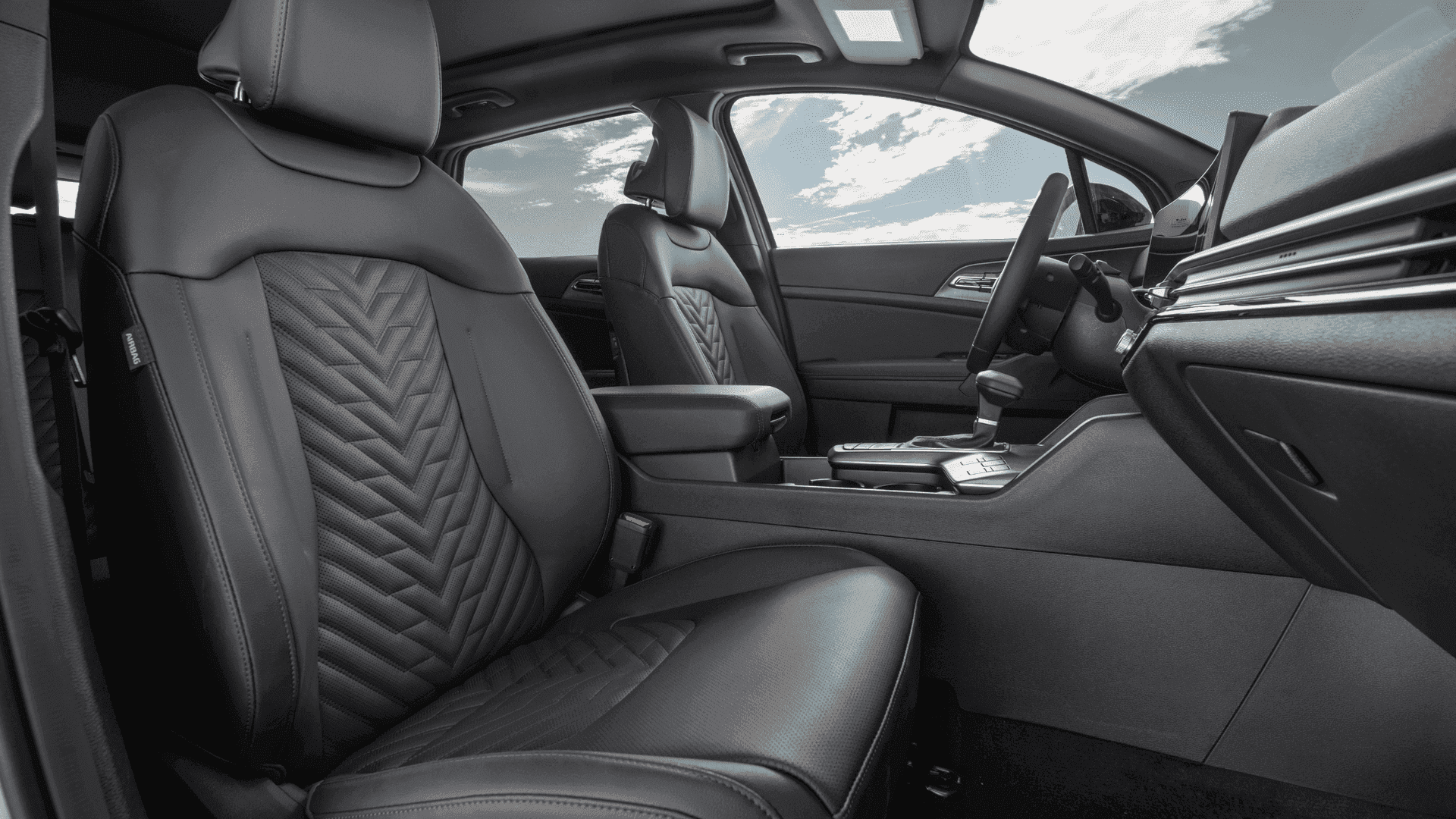

Interior Dimensions and Seating Geometry
Interior layout in the 2026 Kia Sportage emphasizes symmetry and passenger space efficiency. Front headroom measures 39.6 inches in models without a sunroof, while sunroof-equipped trims provide 37.8 inches. Rear headroom measures 39.4 inches without a sunroof and 38.0 inches with one installed.
Front legroom is rated at 41.4 inches, while rear legroom measures 41.3 inches, creating near-equal space distribution between seating rows. Shoulder room measures 57.5 inches in the front and 55.6 inches in the rear. Hip room is rated at 54.8 inches in the front and 53.4 inches in the rear. These measurements support consistent seating comfort across varying occupant sizes.
Cargo Capacity and Load Management
Cargo versatility is enhanced through a dual-level cargo floor system. With the rear seats in place, cargo volume measures 36.6 cubic feet in the upper floor position and 39.6 cubic feet in the lower position. When the second-row seats are folded, capacity expands to 69.3 cubic feet with the upper floor and 74.1 cubic feet with the lower floor.
This configuration allows the vehicle to adapt to cargo of varying heights without altering the external dimensions. The flat load surface created in the lowered configuration supports larger items while maintaining interior accessibility.
Suspension Design and Steering Precision
The chassis of the 2026 Kia Sportage utilizes a MacPherson® strut front suspension combined with a multi-link rear suspension. This arrangement supports vertical wheel travel while maintaining lateral stability. Gas-charged shock absorbers are used at all four corners to manage damping consistency across varying road surfaces.
Steering is handled by a column-mounted motor-driven power steering system. The steering ratio is set at 13.7 to 1, delivering controlled input response. Lock-to-lock steering requires 2.41 turns, and the turning radius measures 19.3 feet, supporting maneuverability in confined spaces.
Braking Hardware and Control Systems
All trims of the 2026 Kia Sportage are equipped with four-wheel disc brakes. Front brake rotors measure 320 millimeters by 30 millimeters, while rear rotors measure 300 millimeters by 10 millimeters. Brake booster ratio is rated at 9.1 to 1, paired with an 11-inch booster housing to ensure consistent pedal modulation.
An electronic parking brake with automatic hold functionality is standard. This system maintains braking pressure when the vehicle is stationary and releases automatically during acceleration, supporting controlled stops in traffic conditions.
Wheel, Tire, and Weight Specifications
Wheel sizes vary by trim, ranging from 17-inch to 19-inch alloy wheels. Tire sizes are matched accordingly, including 235 by 65 R17, 235 by 60 R18, and 235 by 55 R19 configurations. Compact spare tires or tire mending kits are provided depending on trim.
Minimum curb weight for front-wheel-drive models begins at 3,434 pounds and reaches up to 3,697 pounds. All-wheel-drive versions range from 3,603 to 3,827 pounds. Gross vehicle weight ratings reach 4,740 pounds for front-wheel drive and 4,872 pounds for all-wheel drive models.
Towing Capacity and Efficiency Ratings
The 2026 Kia Sportage is rated to tow up to 2,500 pounds when equipped with trailer brakes. Without trailer brakes, towing capacity is rated at 1,653 pounds. These figures apply consistently across all trims.
Fuel economy estimates for front-wheel-drive models equipped with the eight-speed automatic transmission are rated at 25 miles per gallon in city driving, 33 miles per gallon on the highway, and 28 miles per gallon combined. All-wheel-drive models are rated at up to 24 miles per gallon city, 30 miles per gallon highway, and 26 miles per gallon combined, depending on trim and wheel configuration.
Disclaimer: EPA fuel economy estimates. Actual mileage will vary with options, driving conditions, driving habits, and your vehicle’s condition.
Integrated Driver Assistance and Technology Systems

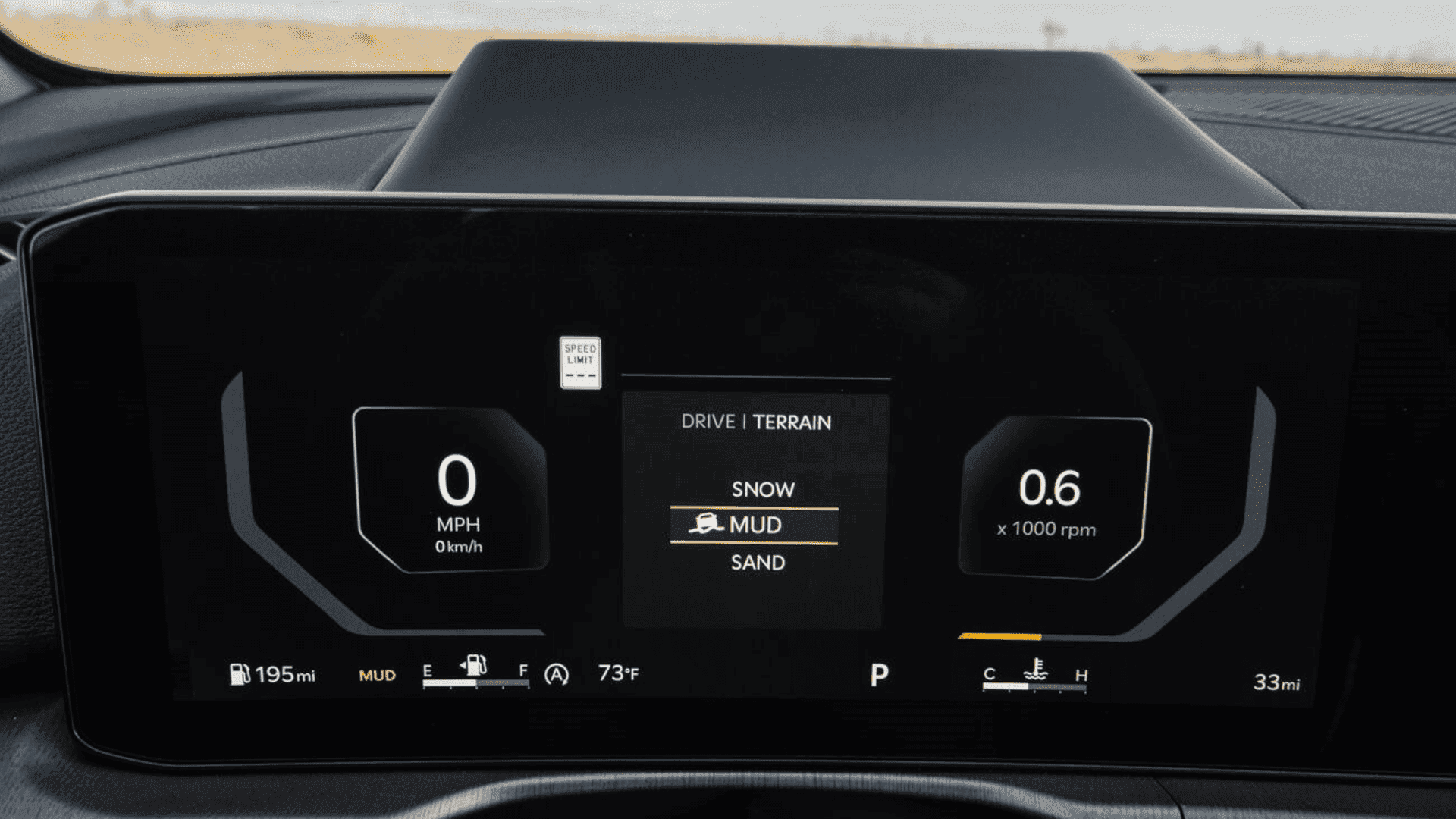

Available technology packages introduce a 12.3-inch touchscreen navigation display paired with a 12.3-inch digital supervision instrument cluster. Wireless smartphone integration is supported, along with over-the-air navigation updates. Advanced driver assistance features include highway driving support, navigation-based cruise control, blind-spot monitoring systems, surround view monitoring, and parking collision avoidance functions.
These systems rely on integrated camera and sensor arrays to provide consistent feedback during highway travel, lane changes, and parking maneuvers.
