2026 Kia Sportage PHEV near Columbia, SC
The 2026 Kia Sportage PHEV combines a turbocharged gasoline engine with an integrated electric motor system to deliver balanced performance, efficient fuel consumption, and practical utility in a compact SUV platform. Engineered with a 1.6-liter Turbo Gasoline Direct Injection engine, a lithium-ion hybrid battery system, and a 6-speed automatic transmission, this model delivers a combined 232 horsepower and 271 lb.-ft. of torque. Its structural dimensions, suspension design, drivetrain calibration, and interior packaging reflect a coordinated engineering approach focused strictly on measurable capability and operational efficiency.
Turbocharged Gasoline Engine Specifications
The 2026 Kia Sportage PHEV uses a 1.6-liter Turbo Gasoline Direct Injection engine with a displacement of 1,598 cc. The engine features an inline 4-cylinder configuration with a bore and stroke of 75.6 mm by 89 mm. It operates with a 10.5:1 compression ratio and uses a 16-valve Dual Overhead Camshaft layout equipped with Continuously Variable Valve Timing and a Hydraulic Lash Adjuster system.
This turbocharged engine produces 177 horsepower at 5,500 rpm and 195 lb.-ft. of torque across a broad 1,500 to 4,500 rpm range. The wide torque band supports consistent acceleration and stable power delivery across varied driving speeds. The engine block and cylinder head are constructed from aluminum to reduce weight while maintaining durability and thermal efficiency. A steel oil pan enhances structural strength and long-term reliability under repeated load cycles.
The direct fuel injection system improves combustion efficiency by delivering fuel directly into the combustion chamber. The engine is calibrated for regular unleaded fuel rated at 87 octane or higher. Coolant capacity measures 4.8 liters, and lubricant oil capacity is rated at 6.0 liters, supporting consistent thermal management and lubrication performance during extended operation.
Hybrid Electric Motor and Starter Generator Integration
The gasoline engine operates in conjunction with a Permanent Magnet Synchronous Motor mounted within the transmission assembly. This electric motor produces 64 horsepower between 1,800 and 2,100 rpm and generates 195 lb.-ft. of torque from 0 to 2,100 rpm. The availability of maximum electric torque at low rpm enhances acceleration from a standstill and supports smoother low-speed maneuvering.
In addition to the primary electric drive motor, the 2026 Kia Sportage PHEV incorporates a hybrid starter generator. This component is also a Permanent Magnet Synchronous Motor and contributes 17.4 horsepower and 31.9 lb.-ft. of torque. The starter generator assists with engine start-stop operations and supports seamless transitions between electric and gasoline propulsion.
The combined hybrid system uses a Transmission Mounted Electric Drive configuration. Total system output is rated at 232 horsepower and 271 lb.-ft. of torque. This integrated system allows the gasoline engine and electric motor to operate independently or together, depending on load demand and driving conditions. The configuration maintains consistent torque delivery and supports efficient energy utilization.
Lithium-Ion Battery Architecture and Electrical Specifications
The hybrid system draws power from a lithium-ion pouch-type battery rated at 270 volts. The battery has a capacity of 5.5 amp-hours and stores 1.49 kilowatt-hours of energy. Maximum battery output is rated at 64.0 kilowatts.
The battery pack weighs 37.5 kilograms, equivalent to 82.7 pounds. Its compact design supports balanced weight distribution within the vehicle structure and preserves interior and cargo space. The electrical architecture is engineered to manage energy flow between the battery, electric motor, and engine while maintaining stable voltage output and consistent performance under varying driving demands.
Transmission and Drivetrain Calibration
The 2026 Kia Sportage PHEV is equipped with a 6-speed automatic transmission. Gear ratios are precisely defined to optimize acceleration and highway efficiency. First gear is set at 4.639:1, second gear at 2.826:1, third gear at 1.841:1, fourth gear at 1.386:1, fifth gear at 1.000:1, and sixth gear at 0.772:1. Reverse gear is calibrated at 3.385:1, and the final gear ratio is 3.320:1.
This configuration supports strong initial acceleration in lower gears while maintaining reduced engine rpm during highway cruising in sixth gear. The system incorporates a multi-plate wet friction engine clutch. This clutch design allows controlled engagement and disengagement between the gasoline engine and electric motor to ensure smooth hybrid operation.
The drivetrain calibration contributes to fuel efficiency ratings of up to 41 mpg in city driving, 44 mpg on the highway, and 42 mpg combined on select trims. Other trims are rated at 35 mpg city, 36 mpg highway, and 35 mpg combined. The fuel tank capacity is 13.7 gallons, supporting extended driving range between refueling stops.
Disclaimer: * Based on EPA estimates on a full battery charge. Actual range will vary with options, driving conditions, driving habits, vehicle maintenance, charging practice, battery age, weather, temperature, and your vehicle’s condition. Battery capacity will decrease with time and use. For more information on range, please see www.fueleconomy.gov.
Exterior Dimensions and Structural Measurements
The 2026 Kia Sportage PHEV is built on a 108.5-inch wheelbase. Overall length measures 184.4 inches, and overall width is 73.4 inches. Height without roof rails ranges from 65.4 inches to 66.1 inches depending on trim, while height with roof rails extends up to 66.3 inches.
Front track width ranges from 63.6 to 63.8 inches, and rear track width ranges from 63.9 to 64.1 inches. Front overhang measures 35.6 inches, and the rear overhang measures 39.4 inches. Ground clearance ranges from 7.1 inches on select trims to 8.3 inches on others, contributing to stable ride height and light off-road capability.
Approach angles measure up to 18.9 degrees, departure angles reach 26.9 degrees, and breakover angles are rated at up to 19.3 degrees. These geometric specifications influence ramp clearance and obstacle negotiation capability.
Interior Dimensions and Cargo Configuration

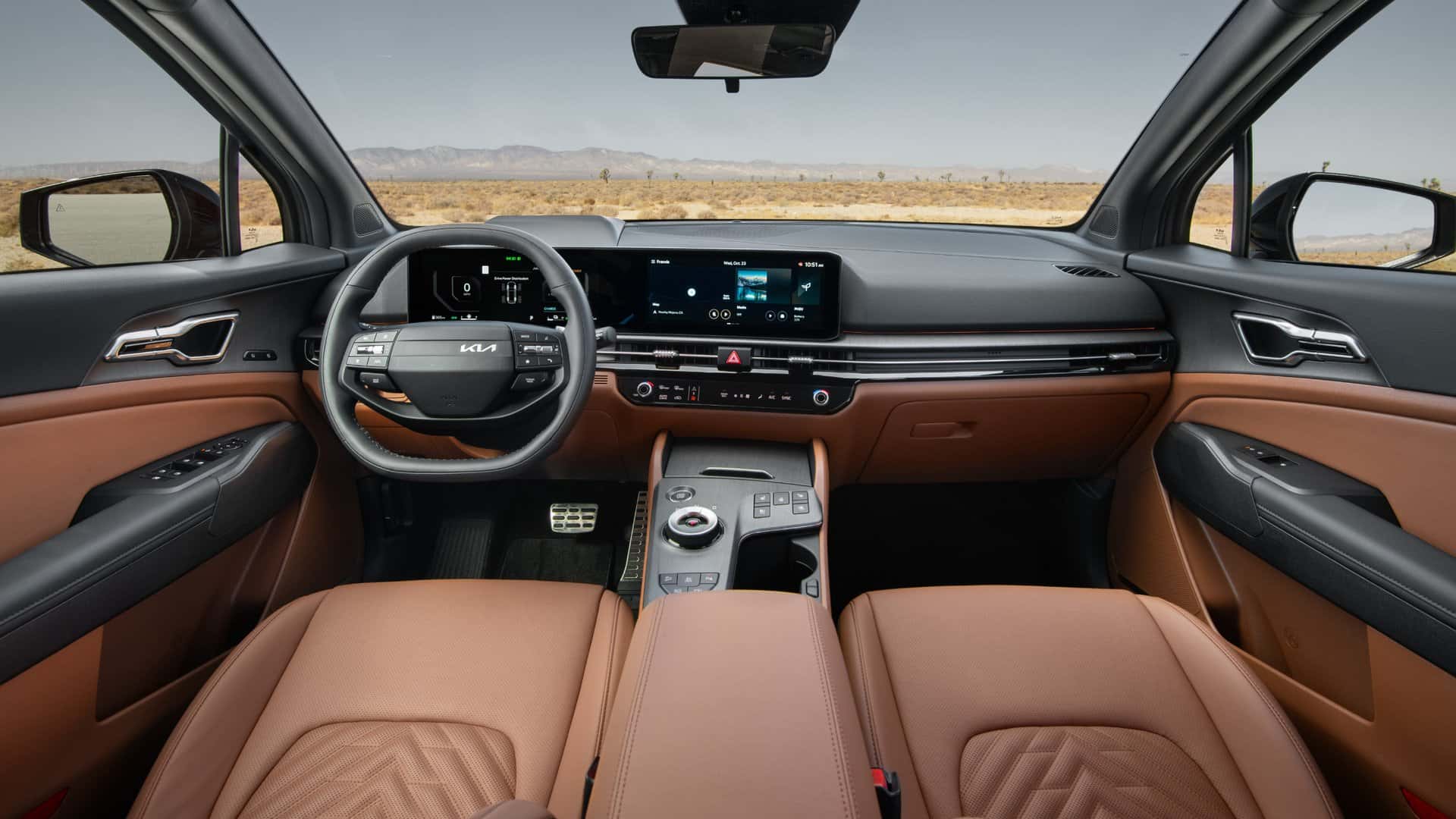

Interior packaging emphasizes space efficiency and occupant comfort. Front headroom without a sunroof measures 39.6 inches, and rear headroom measures 39.1 inches. Models equipped with a sunroof provide 37.8 inches of headroom in both front and rear seating positions.
Front legroom measures 41.4 inches, and rear legroom measures 41.3 inches. Front shoulder room is 57.5 inches, and rear shoulder room measures 55.6 inches. Front hip room measures 54.8 inches, and rear hip room measures 53.4 inches.
Cargo versatility is enhanced through a dual-level cargo floor system. With the rear seats folded and the cargo floor in the low position, capacity reaches 73.7 cubic feet. With the seats in place and the floor set low, cargo capacity measures 39.5 cubic feet. When the floor is positioned at the higher level, capacity measures 65.4 cubic feet behind the first row and 34.5 cubic feet behind the second row. This configuration supports flexible storage arrangements without compromising structural integrity.
Suspension, Steering, and Brake Engineering
The front suspension uses a MacPherson® strut design, and the rear suspension uses a Multi-Link configuration. Gas-filled shock absorbers provide consistent damping characteristics. This suspension layout supports balanced ride quality and controlled body movement during cornering and braking.
Steering is managed by a Column Type Motor Driven Power Steering system. The steering ratio is 13.7:1, and the system requires 2.41 turns from lock to lock. The turning radius measures 19.3 feet, supporting maneuverability in confined spaces.
The braking system includes an Electronic Parking Brake with Auto-Hold functionality. The brake booster ratio is 9.1:1, supporting consistent pedal response and braking force modulation.
Wheels, Tires, Weight, and Towing Capacity
Wheel sizes range from 17-inch alloy wheels measuring 7.0J by 17 inches to 19-inch alloy wheels measuring 7.5J by 19 inches. Tire specifications include 235/65R17, 235/60R18, and 235/55R19 depending on trim level.
Curb weight ranges from 3,598 pounds to 3,994 pounds depending on configuration. The Gross Vehicle Weight Rating reaches up to 5,092 pounds. The vehicle supports a towing capacity of 2,000 pounds when equipped with trailer brakes and 1,653 pounds without trailer brakes. The maximum permissible static vertical load on the coupling device is rated at 220 pounds.
