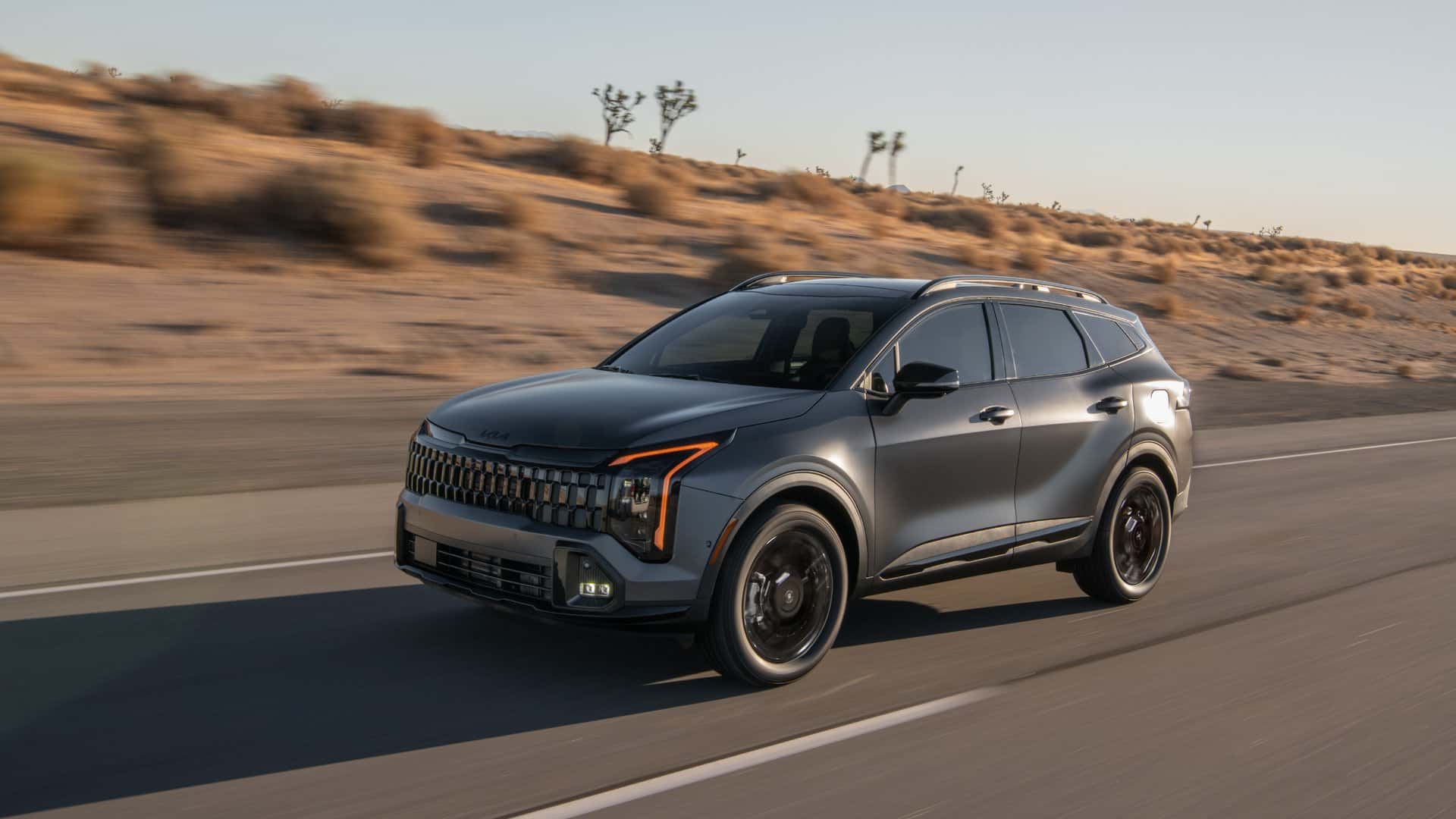

2026 Kia Sportage PHEV near Rock Hill, SC
The 2026 Kia Sportage PHEV is a plug-in hybrid SUV that combines turbocharged gasoline power with electric propulsion through a Transmission Mounted Electric Drive system. The model integrates multiple electrified components with a conventional six-speed automatic transmission to deliver a blend of efficiency and performance. Its engineering includes a dedicated lithium-ion battery system, a permanent magnet electric motor, and a hybrid starter generator that work together as part of the overall powertrain.
Powertrain and Hybrid System
The 2026 Kia Sportage PHEV combines a turbocharged internal combustion engine with an electric drive system to create a plug-in hybrid configuration. This arrangement uses a Transmission Mounted Electric Drive layout that integrates electric propulsion into the drivetrain while maintaining the operation of a traditional automatic transmission. The system includes a gasoline engine, a primary electric motor, and a hybrid starter generator. The powertrain design also incorporates several lightweight materials and modern valvetrain technologies.
Turbocharged Gasoline Engine
The gasoline engine in the 2026 Kia Sportage PHEV is a 1.6-liter Turbo Gasoline Direct Injection unit with a displacement of 1,598 cc. It features an inline four-cylinder configuration with a bore and stroke of 75.6 x 89 mm and a compression ratio of 10.5:1. Maximum output reaches 177 horsepower at 5,500 rpm, while peak torque measures 195 lb.-ft. between 1,500 and 4,500 rpm. The engine uses direct fuel injection and operates on regular unleaded gasoline with an octane rating of 87 or higher. Aluminum construction for the engine block and cylinder head helps reduce weight, while a steel oil pan provides durability.
Valve Train and Supporting Components
The engine employs a 16-valve DOHC CVVT design with a hydraulic lash adjuster. This configuration manages valve operation while contributing to smooth engine performance. Coolant capacity is rated at 4.8 liters, and the emission control system incorporates WCC and UCC components. Fuel is stored in a 13.7-gallon tank that supports the plug-in hybrid system and contributes to overall driving range.
Electric Motor and Hybrid Starter Generator
A permanent magnet synchronous motor serves as the primary electric drive unit in the 2026 Kia Sportage PHEV. This motor produces 97 horsepower between 2,300 and 3,600 rpm and delivers 224 lb.-ft. of torque from zero to 2,100 rpm. The immediate availability of torque allows the electric motor to contribute strongly at lower speeds. Supporting the system is a separate permanent magnet synchronous hybrid starter generator that develops 17.4 horsepower and 31.9 lb.-ft. of torque. These components are integrated into the hybrid system to assist with overall operation and the transition between gasoline and electric power.
Combined System Output
The plug-in hybrid powertrain uses a Transmission Mounted Electric Drive configuration that combines the outputs of the gasoline engine and electric motor. Total system output is rated at 268 horsepower. Combined torque reaches 271 lb.-ft. and is available from zero to 2,100 rpm. The interaction between the engine and electric motor provides a broad operating range and supports responsive acceleration characteristics.
Battery and Charging Technology
The battery system plays an important role in the operation of the 2026 Kia Sportage PHEV. The vehicle uses a lithium-ion pouch battery designed specifically for plug-in hybrid applications. The battery system supports electric driving capability while supplying energy to the hybrid powertrain. Its specifications reflect the demands of both efficiency and performance. Charging capability is also integrated into the system to simplify energy replenishment.
Lithium-Ion Battery Specifications
The battery pack operates at 360 volts and provides a capacity of 38.3 Ah. Total energy storage is rated at 13.8 kWh, while maximum battery power reaches 88.0 kW. The battery assembly weighs 140 kilograms, or 308.7 pounds. These characteristics allow the battery to support the operation of the electric motor and the broader hybrid system. The battery technology is packaged to function within the vehicle’s plug-in hybrid architecture.
Charging Capability
When connected to a 240-volt charging source, the battery requires approximately two hours to charge. This charging time allows the battery to replenish energy efficiently and maintain electric driving capability. The charging system forms an important part of the vehicle’s plug-in hybrid design. Combined with the gasoline engine, it provides flexibility in daily operation. The arrangement enables drivers to take advantage of both electric propulsion and conventional fuel-powered operation.
Transmission and Drivetrain
The 2026 Kia Sportage PHEV employs a six-speed automatic transmission that works in conjunction with the hybrid system. The transmission uses gear ratios designed to support both acceleration and efficiency. This configuration maintains familiar driving characteristics while integrating electric propulsion. A multi-plate wet friction clutch is used within the system to assist in power delivery.
Gear Ratios and Clutch Design
First gear uses a ratio of 4.639:1, followed by second gear at 2.826:1 and third gear at 1.841:1. Fourth gear is set at 1.386:1, while fifth gear uses a 1.000:1 ratio and sixth gear employs a 0.772:1 ratio. Reverse gear is rated at 3.385:1, and the final drive ratio measures 3.367:1. Transmission lubricant capacity totals 6.0 liters. The engine clutch utilizes a multi-plate wet friction design that supports the integration of gasoline and electric power sources.
Exterior Dimensions and Vehicle Geometry
The dimensions of the 2026 Kia Sportage PHEV contribute to interior space and overall vehicle proportions. A wheelbase of 108.5 inches provides the foundation for the platform. Overall length measures 184.4 inches, while width reaches 73.4 inches. Height with roof rails is 66.9 inches. Front and rear track dimensions measure 63.6 inches and 63.9 inches, respectively.
Ground Clearance and Angles
Minimum ground clearance is rated at 8.3 inches. Front and rear overhang dimensions measure 35.6 inches and 39.4 inches, respectively. The approach angle is 18.9 degrees, while the departure angle reaches 26.9 degrees. Breakover angle measures 17.7 degrees. These dimensions contribute to the vehicle’s overall geometry and influence maneuverability.
Interior Space and Cargo Capacity

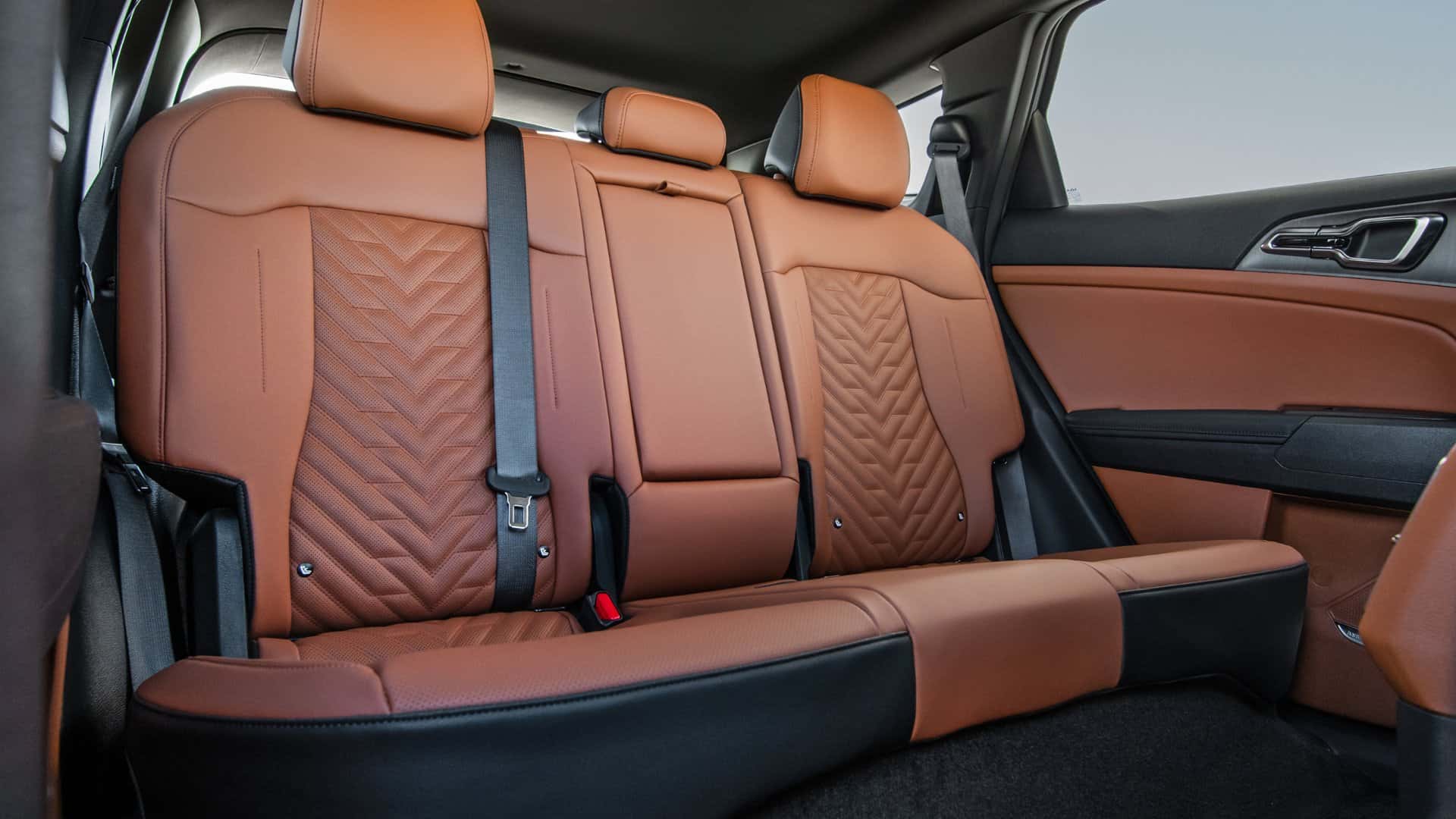

Passenger accommodations in the 2026 Kia Sportage PHEV provide generous dimensions throughout the cabin. Interior measurements are designed to support comfort for both front and rear occupants. Seating space is distributed across multiple dimensions to provide room for everyday travel. Cargo flexibility is enhanced by a dual-level floor arrangement.
Passenger Dimensions
Front headroom with the sunroof measures 39.6 inches, while rear headroom reaches 39.1 inches. Front legroom is rated at 41.4 inches, and rear legroom measures 39.5 inches. Shoulder room totals 57.5 inches in the front and 55.6 inches in the rear. Front hip room measures 54.8 inches, while rear hip room reaches 53.4 inches.
Cargo Area Functionality
The dual-level cargo floor adds flexibility to the rear storage area. Cargo volume behind the first row reaches 65.5 cubic feet when configured in the high position. Storage capacity behind the second row measures 34.5 cubic feet. This arrangement allows the cargo compartment to adapt to different carrying requirements.
Chassis, Suspension, and Steering
The chassis of the 2026 Kia Sportage PHEV uses suspension components intended to balance ride quality and handling characteristics. A MacPherson® strut front suspension works together with a multi-link rear suspension. Gas shock absorbers are fitted throughout the vehicle. This arrangement contributes to vehicle stability and consistent handling behavior. The steering system complements the suspension with electrically assisted operation.
Steering Characteristics
The 2026 Kia Sportage PHEV uses a column-type Motor Driven Power Steering system. Steering ratio is 13.7:1, and the system requires 2.41 turns from lock to lock. Turning radius measures 19.3 feet. These specifications contribute to maneuverability in confined spaces and support a predictable steering response.
Brake System
The brake system uses a booster ratio of 9.1:1. An Electronic Parking Brake with Auto-Hold functionality is included as part of the braking system. Auto-Hold helps maintain the vehicle in a stationary position during stops. The integration of the electronic parking brake contributes to convenience and ease of operation. These braking components form part of the vehicle’s overall control systems.
Wheels, Tires, Weight, and Towing Capability
The 2026 Kia Sportage PHEV rides on 7.5J x 19 alloy wheels paired with 235/55R19 tires. A compact spare tire with dimensions of T135/90D17 is included for emergency situations. Vehicle weight ranges from 4,215 pounds to 4,307 pounds, depending on configuration. Gross vehicle weight rating is 5,379 pounds.
Utility and Towing Specifications
When equipped with trailer brakes, the 2026 Kia Sportage PHEV is rated to tow up to 2,000 pounds. Towing capacity without trailer brakes is rated at 1,653 pounds. The maximum permissible static vertical load on the coupling device is 220 pounds.
Efficiency and Driving Range
The plug-in hybrid system contributes to both fuel economy and electric driving capability. Total driving range for the 2026 Kia Sportage PHEV is rated at 470 miles. The model provides an all-electric range of 34 miles before relying on gasoline power. Combined EPA fuel economy is rated at 36 mpg, while combined MPGe reaches 83.
